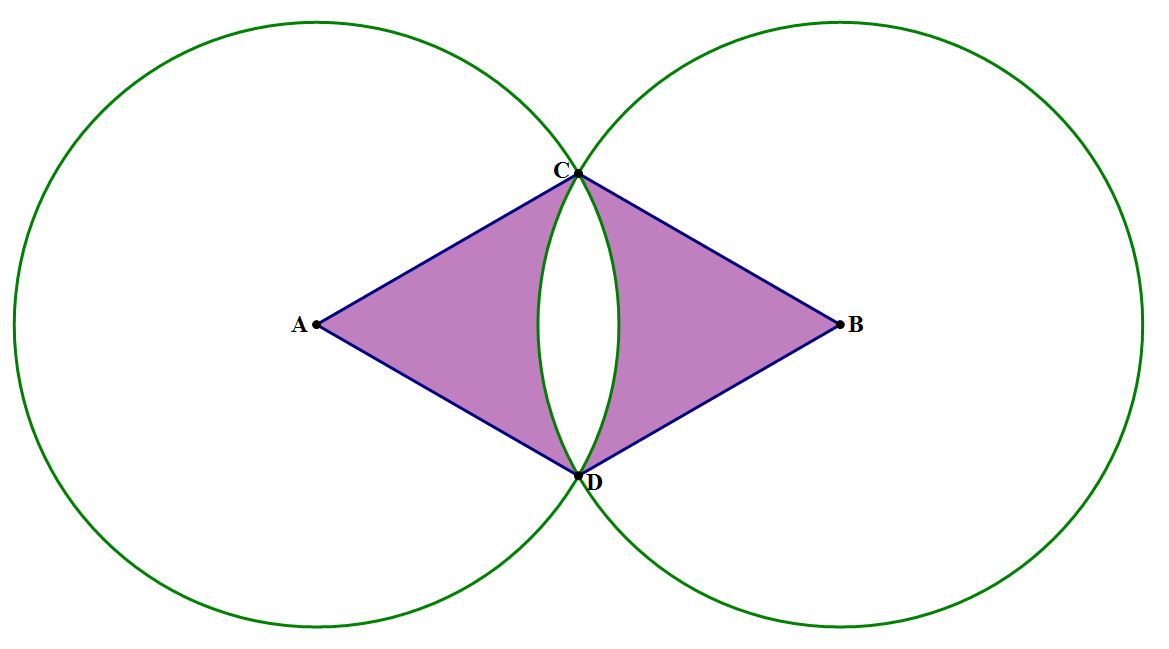

In the diagram above, A & B are the centers of the two circles, each w
[#permalink]
Show Tags
08 Mar 2015, 19:29
Question Stats:
42% (03:02) correct 58% (02:41) wrong based on 186 sessions
HideShow timer Statistics



Manager
Status: single
Joined: 19 Jan 2015
Posts: 88
Location: India
GPA: 3.2
WE: Sales (Pharmaceuticals and Biotech)

Re: In the diagram above, A & B are the centers of the two circles, each w
[#permalink]
Show Tags
08 Mar 2015, 21:33
area of circle= pi r2 angle 60 degree , radius=6 then area of sector =1/6 pi r2 =36/6pi =6pi area of equilateral triangle.=root 3/4a2= root3/4*36=9root3 Area of shaded region= area of sector area of equilateral triangle. =6pi9rrot3. here two circles inscribed and equal radius 6 so area of unshaded region=2*(6pi9root3) =12pi18root3 option A sufficient



Manager
Status: A mind once opened never loses..!
Joined: 05 Mar 2015
Posts: 210
Location: India
MISSION : 800
WE: Design (Manufacturing)

Re: In the diagram above, A & B are the centers of the two circles, each w
[#permalink]
Show Tags
09 Mar 2015, 00:18

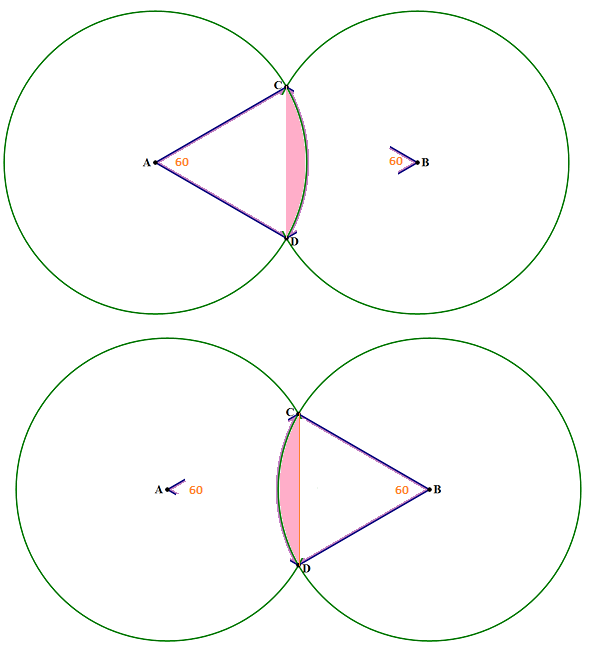

Hi Everyone And dear Psiva00734 your have calculated the area of unshaded region whilst the question asks for the shaded As shown in the diagram below triangles ACD & BCD are equilateral. No considering circle 1 Area of the sector= (60/360)*πr^2 = 6π Area of equilateral triangle ACD = (√3a^2)4=9√3 Area of unshaded(yellow) part = 6π  9√3 Now total unshaded area = twice of 6π  9√3 =12π  18√3 Area of quadrilateral ABCD= Sum of areas of both the triangles = 9√3 + 9√3 =18√3 Now Area of shaded part = Area of quadrilateral  unshaded area = 18√3  (12π  18√3) = 36√3 12π
Attachments
File comment: Solution
gpp_img5.png [ 53.08 KiB  Viewed 6465 times ]
_________________
Thank you
+KUDOS
> I CAN, I WILL <



Intern
Joined: 24 Feb 2015
Posts: 2

Re: In the diagram above, A & B are the centers of the two circles, each w
[#permalink]
Show Tags
09 Mar 2015, 02:58
D for me .. It took me almost 5 min to complete Good question



Intern
Joined: 19 Dec 2013
Posts: 11
GPA: 4

Re: In the diagram above, A & B are the centers of the two circles, each w
[#permalink]
Show Tags
Updated on: 09 Mar 2015, 18:15
Sorry, didn't follow the shaded region properly.
Option D. Required area =2*triangle area2*(area of sectorarea of triangle in each circle) =2*sqrt(3)/4*side^22*(sector angle/total circle angle*pi*side^2  sqrt(3)/4*side^2) =2*sqrt(3)/4*side^22*(60/360*pi*6^2sqrt(3)/4*6^2) =18*sqrt(3)(12*pi18*sqrt(3)) =36*sqrt(3)12*pi
Originally posted by VSabc on 09 Mar 2015, 14:16.
Last edited by VSabc on 09 Mar 2015, 18:15, edited 1 time in total.



Senior Manager
Joined: 28 Feb 2014
Posts: 294
Location: United States
Concentration: Strategy, General Management

Re: In the diagram above, A & B are the centers of the two circles, each w
[#permalink]
Show Tags
09 Mar 2015, 17:52
Bunuel wrote: Attachment: gpp_img5.png In the diagram above, A & B are the centers of the two circles, each with radius r = 6, and ∠A = ∠B = 60°. What is the area of the shaded region? Attachment: gpp_img6.png The area of 1/6 of a circle is 6pi. The area of the equilateral triangle is 9sqrt(3) which is found by (1/2)*(6)*sqrt(27) subtracting the equilateral triangle from the onesixth portion of the circle gives us the small unshaded portion, which is 6pi9sqrt(3). The area of shaded region can be found by: 2 equilateral triangles  2 small unshaded portions. 2*9sqrt(3)2(6pi9sqrt(3)) =36sqrt(3)12pi Answer: D



Veritas Prep GMAT Instructor
Joined: 16 Oct 2010
Posts: 8574
Location: Pune, India

Re: In the diagram above, A & B are the centers of the two circles, each w
[#permalink]
Show Tags
09 Mar 2015, 21:28
Bunuel wrote: Attachment: gpp_img5.png In the diagram above, A & B are the centers of the two circles, each with radius r = 6, and ∠A = ∠B = 60°. What is the area of the shaded region? Attachment: gpp_img6.png Area of sector ACD =\(Q/360 * \pi * r^2 = 60/360 * \pi * 6^2 = 6\pi\) Area of triangle ACD \(= \sqrt{3}/4 * side^2 = \sqrt{3}/4 * 6^2 = 9\sqrt{3}\) Half of the unshaded region in middle \(= 6\pi  9\sqrt{3}\) Area of shaded region = 2 * (Area of triangle ACD  Half of the unshaded region in middle) \(= 2 * 9\sqrt{3}  2*6\pi + 2*9\sqrt{3} = 36\sqrt{3}  12\pi\) Answer (D)
_________________
Karishma Veritas Prep GMAT Instructor
Learn more about how Veritas Prep can help you achieve a great GMAT score by checking out their GMAT Prep Options >
GMAT selfstudy has never been more personalized or more fun. Try ORION Free!



Math Expert
Joined: 02 Sep 2009
Posts: 50711

Re: In the diagram above, A & B are the centers of the two circles, each w
[#permalink]
Show Tags
15 Mar 2015, 19:44

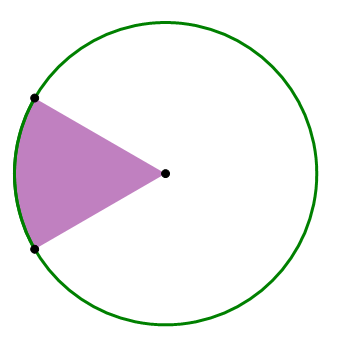

Bunuel wrote: In the diagram above, A & B are the centers of the two circles, each with radius r = 6, and ∠A = ∠B = 60°. What is the area of the shaded region? Attachment: The attachment gpp_img6.png is no longer available MAGOOSH OFFICIAL SOLUTION:Step #1: Each circle has an area of \(A = \pi{r^2}=\pi{(6^2)}=36\pi\). Step #2: One sector, one “slice of pie”, occupies 60°, one sixth of the circle. Attachment:
gpp_img13.png [ 11.52 KiB  Viewed 6272 times ]

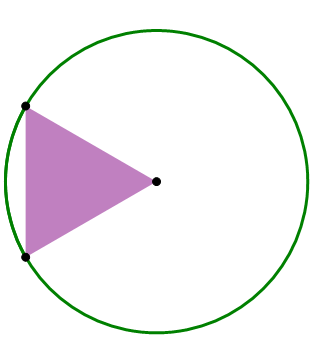

Each sector has an area of \(A = 6\pi\). Step #3: Now look at the equilateral triangle. Attachment:
gpp_img15.png [ 11.5 KiB  Viewed 6272 times ]

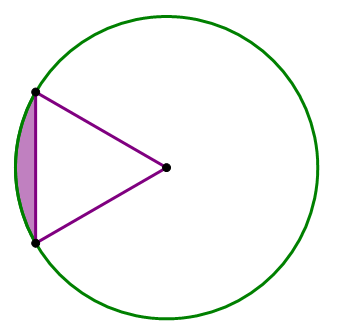

This has a side of s = 6, so it’s area is \(A = 9\sqrt{3}\). Step #4: A circular segment is the name for that little leftover piece, the part of the sector that’s beyond the triangle: Attachment:
gpp_img17.png [ 12.02 KiB  Viewed 6272 times ]
As may be clear, the (area of segment) = (area of sector) – (area of triangle), so the sector has an area of \(A = 6\pi  9\sqrt{3}\). Step #5: Now, notice that the shaded region in the diagram is two equilateral triangles minus two circular segments. That’s exactly as we’ll calculate it. \(A =2(9\sqrt{3})2( 6\pi  9\sqrt{3})=36\sqrt{3}12\pi\). Answer = (D)
_________________
New to the Math Forum? Please read this: Ultimate GMAT Quantitative Megathread  All You Need for Quant  PLEASE READ AND FOLLOW: 12 Rules for Posting!!! Resources: GMAT Math Book  Triangles  Polygons  Coordinate Geometry  Factorials  Circles  Number Theory  Remainders; 8. Overlapping Sets  PDF of Math Book; 10. Remainders  GMAT Prep Software Analysis  SEVEN SAMURAI OF 2012 (BEST DISCUSSIONS)  Tricky questions from previous years.
Collection of Questions: PS: 1. Tough and Tricky questions; 2. Hard questions; 3. Hard questions part 2; 4. Standard deviation; 5. Tough Problem Solving Questions With Solutions; 6. Probability and Combinations Questions With Solutions; 7 Tough and tricky exponents and roots questions; 8 12 Easy Pieces (or not?); 9 Bakers' Dozen; 10 Algebra set. ,11 Mixed Questions, 12 Fresh Meat DS: 1. DS tough questions; 2. DS tough questions part 2; 3. DS tough questions part 3; 4. DS Standard deviation; 5. Inequalities; 6. 700+ GMAT Data Sufficiency Questions With Explanations; 7 Tough and tricky exponents and roots questions; 8 The Discreet Charm of the DS; 9 Devil's Dozen!!!; 10 Number Properties set., 11 New DS set.
What are GMAT Club Tests? Extrahard Quant Tests with Brilliant Analytics



Current Student
Joined: 06 Mar 2014
Posts: 245
Location: India
GMAT Date: 04302015

Re: In the diagram above, A & B are the centers of the two circles, each w
[#permalink]
Show Tags
24 Mar 2015, 14:25
Bunuel wrote: Bunuel wrote: In the diagram above, A & B are the centers of the two circles, each with radius r = 6, and ∠A = ∠B = 60°. What is the area of the shaded region? Attachment: gpp_img6.png MAGOOSH OFFICIAL SOLUTION:Step #1: Each circle has an area of \(A = \pi{r^2}=\pi{(6^2)}=36\pi\). Step #2: One sector, one “slice of pie”, occupies 60°, one sixth of the circle. Attachment: gpp_img13.png Each sector has an area of \(A = 6\pi\). Step #3: Now look at the equilateral triangle. Attachment: gpp_img15.png This has a side of s = 6, so it’s area is \(A = 9\sqrt{3}\). Step #4: A circular segment is the name for that little leftover piece, the part of the sector that’s beyond the triangle: Attachment: gpp_img17.png As may be clear, the (area of segment) = (area of sector) – (area of triangle), so the sector has an area of \(A = 6\pi  9\sqrt{3}\). Step #5: Now, notice that the shaded region in the diagram is two equilateral triangles minus two circular segments. That’s exactly as we’ll calculate it. \(A =2(9\sqrt{3})2( 6\pi  9\sqrt{3})=36\sqrt{3}12\pi\).Answer = (D) I am clear about how we get the area of segment but the total area calculation (highlighted part) is still confusing. Why 2* area of segment subtracted from 2*Area of Triangles.



SVP
Status: The Best Or Nothing
Joined: 27 Dec 2012
Posts: 1826
Location: India
Concentration: General Management, Technology
WE: Information Technology (Computer Software)

Re: In the diagram above, A & B are the centers of the two circles, each w
[#permalink]
Show Tags
24 Mar 2015, 22:23
earnit wrote: Bunuel wrote: Bunuel wrote: In the diagram above, A & B are the centers of the two circles, each with radius r = 6, and ∠A = ∠B = 60°. What is the area of the shaded region? Attachment: gpp_img6.png MAGOOSH OFFICIAL SOLUTION:Step #1: Each circle has an area of \(A = \pi{r^2}=\pi{(6^2)}=36\pi\). Step #2: One sector, one “slice of pie”, occupies 60°, one sixth of the circle. Attachment: gpp_img13.png Each sector has an area of \(A = 6\pi\). Step #3: Now look at the equilateral triangle. Attachment: gpp_img15.png This has a side of s = 6, so it’s area is \(A = 9\sqrt{3}\). Step #4: A circular segment is the name for that little leftover piece, the part of the sector that’s beyond the triangle: Attachment: gpp_img17.png As may be clear, the (area of segment) = (area of sector) – (area of triangle), so the sector has an area of \(A = 6\pi  9\sqrt{3}\). Step #5: Now, notice that the shaded region in the diagram is two equilateral triangles minus two circular segments. That’s exactly as we’ll calculate it. \(A =2(9\sqrt{3})2( 6\pi  9\sqrt{3})=36\sqrt{3}12\pi\).Answer = (D) I am clear about how we get the area of segment but the total area calculation (highlighted part) is still confusing. Why 2* area of segment subtracted from 2*Area of Triangles. Refer diagram of Step 4 don by Bunuel Twice the shaded area has to be removed from the area of rhombus to get the desired answer
_________________
Kindly press "+1 Kudos" to appreciate



SVP
Status: The Best Or Nothing
Joined: 27 Dec 2012
Posts: 1826
Location: India
Concentration: General Management, Technology
WE: Information Technology (Computer Software)

Re: In the diagram above, A & B are the centers of the two circles, each w
[#permalink]
Show Tags
24 Mar 2015, 23:02
Attachment:

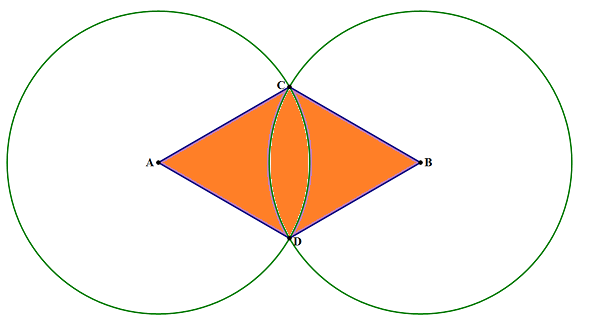

rhombus.png [ 29.04 KiB  Viewed 6139 times ]
Area of rhombus \(= \frac{\sqrt{3}}{2} * 6^2 = 18\sqrt{3}\) Attachment:
gpp_img5.png [ 53.59 KiB  Viewed 6132 times ]
Area of shaded region (each) = Area of sector  Area of equilateral triangle \(= \frac{\pi6^2}{6}  \frac{\sqrt{3}}{4} * 6^2 = 6\pi  9\sqrt{3}\) Required shaded region area \(= 18\sqrt{3}  2(6\pi  9\sqrt{3}) = 36\sqrt{3}  12\pi\) Answer = D
_________________
Kindly press "+1 Kudos" to appreciate



Board of Directors
Joined: 17 Jul 2014
Posts: 2645
Location: United States (IL)
Concentration: Finance, Economics
GPA: 3.92
WE: General Management (Transportation)

Re: In the diagram above, A & B are the centers of the two circles, each w
[#permalink]
Show Tags
04 Jan 2016, 18:33
that's a tough mother F... :D ok, so how I solved:
area of each circle is 36pi. the two radii from A to C and D form a 1/6 arc, with the length of 6pi. the same is true for the arc BCD. so the total area of both regions is something below 12pi. now, we can create 4 right triangles if we draw 2 lines : from C to D, and from A to B. Angles A and B are bisected, and since both angles are 60 degrees, we have created four angles of 30 degrees, or four right 306090 triangles. the hypotenuse is 6, thus, knowing that the sides of 306090 triangle are in xx sqrt3 2x ratio, we can find the legs. thus, the legs are 3 and sqrt 3. area of each triangle is 4.5 * sqrt(3). or for all four triangles, 18*sqrt(3).
now, the area of the not shaded region must be: 12pi  18*sqrt(3).
therefore, the area of the shaded region must be: the area of the triangles  the area of the unshaded region, which is an overlap. thus, 18*sqrt(3)  [12pi  18*sqrt(3)] = 18*sqrt(3)+18*sqrt(3)  12pi. or 36*sqrt(3)  12pi.
ps. we can see as well that we can create 2 equilateral triangles, since angles C and D, when the line from C to D is drawn, are 60 degrees. Knowing the property of the equilateral triangle: area = s^2 * sqrt(3) /4 = we can find the area of each equilateral triangle.
