In the figure, circle O has center O, diameter AB and a radius of 5.

  new topic post reply Question banks Downloads My Bookmarks Reviews Important topics
Author Message
TAGS:

Hide Tags

Manager
Manager
avatar
Joined: 01 Jun 2014
Posts: 95
Concentration: Entrepreneurship, Operations
Reviews Badge
Re: In the figure, circle O has center O, diameter AB and a radius of 5. [#permalink]

Show Tags

New post 03 May 2015, 21:23
I must be missing something. Can anyone point me in the right direction to read about parallel lines in Circles? i don't understand why the angles are equal. Thanks!
Expert Post
Math Expert
User avatar
V
Joined: 02 Sep 2009
Posts: 44566
Re: In the figure, circle O has center O, diameter AB and a radius of 5. [#permalink]

Show Tags

New post 04 May 2015, 02:28
itsmedavidv wrote:
I must be missing something. Can anyone point me in the right direction to read about parallel lines in Circles? i don't understand why the angles are equal. Thanks!


Check Coordinate Geometry and Circles chapters of our Math Book.

Hope it helps.
_________________

New to the Math Forum?
Please read this: Ultimate GMAT Quantitative Megathread | All You Need for Quant | PLEASE READ AND FOLLOW: 12 Rules for Posting!!!

Resources:
GMAT Math Book | Triangles | Polygons | Coordinate Geometry | Factorials | Circles | Number Theory | Remainders; 8. Overlapping Sets | PDF of Math Book; 10. Remainders | GMAT Prep Software Analysis | SEVEN SAMURAI OF 2012 (BEST DISCUSSIONS) | Tricky questions from previous years.

Collection of Questions:
PS: 1. Tough and Tricky questions; 2. Hard questions; 3. Hard questions part 2; 4. Standard deviation; 5. Tough Problem Solving Questions With Solutions; 6. Probability and Combinations Questions With Solutions; 7 Tough and tricky exponents and roots questions; 8 12 Easy Pieces (or not?); 9 Bakers' Dozen; 10 Algebra set. ,11 Mixed Questions, 12 Fresh Meat

DS: 1. DS tough questions; 2. DS tough questions part 2; 3. DS tough questions part 3; 4. DS Standard deviation; 5. Inequalities; 6. 700+ GMAT Data Sufficiency Questions With Explanations; 7 Tough and tricky exponents and roots questions; 8 The Discreet Charm of the DS; 9 Devil's Dozen!!!; 10 Number Properties set., 11 New DS set.


What are GMAT Club Tests?
Extra-hard Quant Tests with Brilliant Analytics

Intern
Intern
avatar
Joined: 24 Jun 2015
Posts: 46
GMAT ToolKit User
Re: In the figure, circle O has center O, diameter AB and a radius of 5. [#permalink]

Show Tags

New post 05 Jul 2015, 13:45
Bunuel wrote:
LalaB wrote:
Bunuel wrote:

Now, we should find the lengths of BC and BE (notice that they are equal). Since <CBA=30 then triangle ACB is 30-60-90 right triangle (AB=diameter means that <C=90), thus \(\frac{BC}{AB}=\frac{\sqrt{3}}{2}\), (BC is opposite to 60 degrees so corresponds to \(\sqrt{3}\)) --> \(\frac{BC}{10}=\frac{\sqrt{3}}{2}\) (AB=diameter=2r=10) --> \(BC=5\sqrt{3}\);



I didnt get this part. could u please explain sqroot3/2, or give some links where I can read theory?

btw, Bunuel, is there another way to solve this question?


Triangle ACB is a 30°-60°-90° right triangle. AC is opposite the smallest angle 30°, BC is opposite 60° angle, and hypotenuse AB is opposite the largest angle 90°.

• A right triangle where the angles are 30°, 60°, and 90°.
This is one of the 'standard' triangles you should be able recognize on sight. A fact you should commit to memory is: The sides are always in the ratio \(1 : \sqrt{3}: 2\).
Notice that the smallest side (1) is opposite the smallest angle (30°), and the longest side (2) is opposite the largest angle (90°).

So, for our question BC (the side opposite 60° angle) and AB (the side opposite the largest angle 90°) must be in the ratio \(\sqrt{3}:2\) --> \(\frac{BC}{AB}=\frac{\sqrt{3}}{2}\), and since AB=diameter=2r=10 then \(\frac{BC}{10}=\frac{\sqrt{3}}{2}\) --> \(BC=5\sqrt{3}\).

For more on this subject check Triangles chapter of Math Book: math-triangles-87197.html

Hope it helps.


Hi Bunuel,

Could you help me with this?:

The right triangle with hypotenuse 10 is not supposed to be a multiple of the (3 - 4 - 5) right triangle??? Then if it were a multiple of this (3 - 4 - 5) it would be (6 - 8 -10); then CB would be 8 instead of 5√3.... I am confused why this results are different. I was thinking that whatever hypotenuse of 10 with 30 - 60 - 90 right triangle had to match with the 6 - 8 - 10 shortcut... Could you help me?

Thanks a lot.

Regards.

Luis Navarro
Looking for 700
1 KUDOS received
Current Student
avatar
S
Joined: 20 Mar 2014
Posts: 2652
Concentration: Finance, Strategy
Schools: Kellogg '18 (M)
GMAT 1: 750 Q49 V44
GPA: 3.7
WE: Engineering (Aerospace and Defense)
GMAT ToolKit User Premium Member Reviews Badge
Re: In the figure, circle O has center O, diameter AB and a radius of 5. [#permalink]

Show Tags

New post 05 Jul 2015, 14:01
1
This post received
KUDOS
luisnavarro wrote:

Hi Bunuel,

Could you help me with this?:

The right triangle with hypotenuse 10 is not supposed to be a multiple of the (3 - 4 - 5) right triangle??? Then if it were a multiple of this (3 - 4 - 5) it would be (6 - 8 -10); then CB would be 8 instead of 5√3.... I am confused why this results are different. I was thinking that whatever hypotenuse of 10 with 30 - 60 - 90 right triangle had to match with the 6 - 8 - 10 shortcut... Could you help me?

Thanks a lot.

Regards.

Luis Navarro
Looking for 700


You are not looking at this correctly.

\(1:\sqrt{3}:2\) is only applicable for triangles having angles as \(30^{\circ},60^{\circ}, 90^{\circ}\)

2nd 'special' type of right triangles are the \(45^{\circ},45^{\circ} , 90^{\circ}\) , in which the ratio of the sides becomes \(1:1:\sqrt{2}\)

Right triangles that do not fall under the above 2 cases should not be mixed with the above rules. These triangles have sides that vary with the relative angles inside the triangle. Triangles with sides 3:4:5 or any multiples of this such as 6:8:10 or 9:12:15 etc do not come under the 2 rules mentioned above and thus you will not get the same proportions for the sides.

Hope this clears your doubt
Intern
Intern
avatar
Joined: 24 Jun 2015
Posts: 46
GMAT ToolKit User
Re: In the figure, circle O has center O, diameter AB and a radius of 5. [#permalink]

Show Tags

New post 05 Jul 2015, 14:51
Engr2012 wrote:
luisnavarro wrote:

Hi Bunuel,

Could you help me with this?:

The right triangle with hypotenuse 10 is not supposed to be a multiple of the (3 - 4 - 5) right triangle??? Then if it were a multiple of this (3 - 4 - 5) it would be (6 - 8 -10); then CB would be 8 instead of 5√3.... I am confused why this results are different. I was thinking that whatever hypotenuse of 10 with 30 - 60 - 90 right triangle had to match with the 6 - 8 - 10 shortcut... Could you help me?

Thanks a lot.

Regards.

Luis Navarro
Looking for 700


You are not looking at this correctly.

\(1:\sqrt{3}:2\) is only applicable for triangles having angles as \(30^{\circ},60^{\circ}, 90^{\circ}\)

2nd 'special' type of right triangles are the \(45^{\circ},45^{\circ} , 90^{\circ}\) , in which the ratio of the sides becomes \(1:1:\sqrt{2}\)

Right triangles that do not fall under the above 2 cases should not be mixed with the above rules. These triangles have sides that vary with the relative angles inside the triangle. Triangles with sides 3:4:5 or any multiples of this such as 6:8:10 or 9:12:15 etc do not come under the 2 rules mentioned above and thus you will not get the same proportions for the sides.

Hope this clears your doubt


Thanks a lot... That means that 3 - 4 - 5 right triangle is not a 30 - 60 - 90 right triangle?
1 KUDOS received
Current Student
avatar
S
Joined: 20 Mar 2014
Posts: 2652
Concentration: Finance, Strategy
Schools: Kellogg '18 (M)
GMAT 1: 750 Q49 V44
GPA: 3.7
WE: Engineering (Aerospace and Defense)
GMAT ToolKit User Premium Member Reviews Badge
Re: In the figure, circle O has center O, diameter AB and a radius of 5. [#permalink]

Show Tags

New post 05 Jul 2015, 15:01
1
This post received
KUDOS
luisnavarro wrote:
Engr2012 wrote:
luisnavarro wrote:

Hi Bunuel,

Could you help me with this?:

The right triangle with hypotenuse 10 is not supposed to be a multiple of the (3 - 4 - 5) right triangle??? Then if it were a multiple of this (3 - 4 - 5) it would be (6 - 8 -10); then CB would be 8 instead of 5√3.... I am confused why this results are different. I was thinking that whatever hypotenuse of 10 with 30 - 60 - 90 right triangle had to match with the 6 - 8 - 10 shortcut... Could you help me?

Thanks a lot.

Regards.

Luis Navarro
Looking for 700


You are not looking at this correctly.

\(1:\sqrt{3}:2\) is only applicable for triangles having angles as \(30^{\circ},60^{\circ}, 90^{\circ}\)

2nd 'special' type of right triangles are the \(45^{\circ},45^{\circ} , 90^{\circ}\) , in which the ratio of the sides becomes \(1:1:\sqrt{2}\)

Right triangles that do not fall under the above 2 cases should not be mixed with the above rules. These triangles have sides that vary with the relative angles inside the triangle. Triangles with sides 3:4:5 or any multiples of this such as 6:8:10 or 9:12:15 etc do not come under the 2 rules mentioned above and thus you will not get the same proportions for the sides.

Hope this clears your doubt


Thanks a lot... That means that 3 - 4 - 5 right triangle is not a 30 - 60 - 90 right triangle?


Yes, exactly. The 3-4-5 triangle or a triangle with any of the other multiples of 3-4-5 is not a 30-60-90 triangle.

FYI, 3-4-5 triangle has angles as \(36.87^{\circ}, 53.13^{\circ},90^{\circ}\) triangle ( For GMAT, you do not have to remember angles that are not 0, 30, 45 60 or 90).

It actually follows from the fact that 30-60-90 triangle will always have sides in the ratio: \(1:\sqrt{3}:2\). The opposite is true as well that if a triangle has sides in the ration \(1:\sqrt{3}:2\), the triangle will then be 30-60-90. The same logic applies to 45-45-90 triangle as well.

Hope this clears your doubt.
Intern
Intern
avatar
Joined: 09 Apr 2015
Posts: 7
Re: In the figure, circle O has center O, diameter AB and a radius of 5. [#permalink]

Show Tags

New post 21 Jul 2015, 11:38
Please help me where I am going wrong with this approach.


I got the length of BC =5[square_root]3

Then for calculating the length of the arc I used the angle CBE = 60 with BC and BE.

The length of the arc would be 1/6*2*pi*5[square_root]3

The perimeter = 10[square_root]3 + 1/6*2*pi*5[square_root]3
Current Student
avatar
S
Joined: 20 Mar 2014
Posts: 2652
Concentration: Finance, Strategy
Schools: Kellogg '18 (M)
GMAT 1: 750 Q49 V44
GPA: 3.7
WE: Engineering (Aerospace and Defense)
GMAT ToolKit User Premium Member Reviews Badge
Re: In the figure, circle O has center O, diameter AB and a radius of 5. [#permalink]

Show Tags

New post 21 Jul 2015, 11:49
varunvarma401 wrote:
Please help me where I am going wrong with this approach.


I got the length of BC =5[square_root]3

Then for calculating the length of the arc I used the angle CBE = 60 with BC and BE.

The length of the arc would be 1/6*2*pi*5[square_root]3

The perimeter = 10[square_root]3 + 1/6*2*pi*5[square_root]3


For calculating the length of the arc, the angle MUST be the center angle (or the angle that the arc makes at the center and NOT at the circumference).

Any angle made by an arc on the circumference = 0.5* Angle made by the SAME arc at the center.

Thus, instead of 60 degrees, you need to calculate the length of arc made by 120 degrees. You will correct answer after that. (1/6) above will become (1/3). Also the entire red equation above is incorrect.

It should be, \(\frac{120}{360} * 2\pi*5 = \frac{10\pi}{3}\)
Intern
Intern
avatar
Joined: 09 Apr 2015
Posts: 7
Re: In the figure, circle O has center O, diameter AB and a radius of 5. [#permalink]

Show Tags

New post 21 Jul 2015, 12:03
Thank you for the explanation Engr2012.

But if we consider a circle with the radius of BC and the sector with angle 60, then the arc length could be calculated right?
1 KUDOS received
Current Student
avatar
S
Joined: 20 Mar 2014
Posts: 2652
Concentration: Finance, Strategy
Schools: Kellogg '18 (M)
GMAT 1: 750 Q49 V44
GPA: 3.7
WE: Engineering (Aerospace and Defense)
GMAT ToolKit User Premium Member Reviews Badge
Re: In the figure, circle O has center O, diameter AB and a radius of 5. [#permalink]

Show Tags

New post 21 Jul 2015, 12:13
1
This post received
KUDOS
varunvarma401 wrote:
Thank you for the explanation Engr2012.

But if we consider a circle with the radius of BC and the sector with angle 60, then the arc length could be calculated right?


Look at the attached picture

Yes, if you are given that "x" = 60 (in the attached picture), radius = r , then length of the arc =\(l = r*\theta\). where \(\theta\)= angle in RADIANS and not degrees that is made by the arc at the CENTER. Thus \(\theta\) in this case will be 2*60 = 120 degrees

For degree to radian conversion, use the fact that 180 degrees = \(\pi\) radians.

Thus, for the example you have quoted, \(l = r*[(120/180)*\pi] = r*2*\pi/3\)
Attachments

image.jpg [ 22.55 KiB | Viewed 1496 times ]

Intern
Intern
avatar
Joined: 26 May 2014
Posts: 41
Location: India
Concentration: General Management, Technology
WE: Information Technology (Computer Software)
Re: In the figure, circle O has center O, diameter AB and a radius of 5. [#permalink]

Show Tags

New post 01 Feb 2016, 05:50
Why did we not add length of Diameter AB in the perimeter of the shaded region?
Expert Post
Math Expert
User avatar
V
Joined: 02 Sep 2009
Posts: 44566
Re: In the figure, circle O has center O, diameter AB and a radius of 5. [#permalink]

Show Tags

New post 01 Feb 2016, 05:57
devbond wrote:
Why did we not add length of Diameter AB in the perimeter of the shaded region?


Perimeter is the distance around a figure, or the measurement of the distance around something; the length of the boundary. Since AB is NOT the boundary of the shaded region (it lies within it) we do not add its length when calculating the perimeter.

Hope it's clear.
_________________

New to the Math Forum?
Please read this: Ultimate GMAT Quantitative Megathread | All You Need for Quant | PLEASE READ AND FOLLOW: 12 Rules for Posting!!!

Resources:
GMAT Math Book | Triangles | Polygons | Coordinate Geometry | Factorials | Circles | Number Theory | Remainders; 8. Overlapping Sets | PDF of Math Book; 10. Remainders | GMAT Prep Software Analysis | SEVEN SAMURAI OF 2012 (BEST DISCUSSIONS) | Tricky questions from previous years.

Collection of Questions:
PS: 1. Tough and Tricky questions; 2. Hard questions; 3. Hard questions part 2; 4. Standard deviation; 5. Tough Problem Solving Questions With Solutions; 6. Probability and Combinations Questions With Solutions; 7 Tough and tricky exponents and roots questions; 8 12 Easy Pieces (or not?); 9 Bakers' Dozen; 10 Algebra set. ,11 Mixed Questions, 12 Fresh Meat

DS: 1. DS tough questions; 2. DS tough questions part 2; 3. DS tough questions part 3; 4. DS Standard deviation; 5. Inequalities; 6. 700+ GMAT Data Sufficiency Questions With Explanations; 7 Tough and tricky exponents and roots questions; 8 The Discreet Charm of the DS; 9 Devil's Dozen!!!; 10 Number Properties set., 11 New DS set.


What are GMAT Club Tests?
Extra-hard Quant Tests with Brilliant Analytics

Current Student
avatar
S
Joined: 20 Mar 2014
Posts: 2652
Concentration: Finance, Strategy
Schools: Kellogg '18 (M)
GMAT 1: 750 Q49 V44
GPA: 3.7
WE: Engineering (Aerospace and Defense)
GMAT ToolKit User Premium Member Reviews Badge
Re: In the figure, circle O has center O, diameter AB and a radius of 5. [#permalink]

Show Tags

New post 01 Feb 2016, 06:29
devbond wrote:
Why did we not add length of Diameter AB in the perimeter of the shaded region?


Due to the fact that in order to calculate perimeter of any area, you only need to consider OUTER bounds of the said area. What is inside, does not matter.

Thus the perimeter for the question asked will be = CB+BE+ minor arc(EAC)

Hope this helps.
Manager
Manager
avatar
B
Joined: 29 Dec 2014
Posts: 70
Re: In the figure, circle O has center O, diameter AB and a radius of 5. [#permalink]

Show Tags

New post 22 Oct 2016, 20:27
Hi, if we were to find the area of the shaded region, what would the solution be.

Thanks
Expert Post
1 KUDOS received
Veritas Prep GMAT Instructor
User avatar
P
Joined: 16 Oct 2010
Posts: 8024
Location: Pune, India
Re: In the figure, circle O has center O, diameter AB and a radius of 5. [#permalink]

Show Tags

New post 07 Apr 2017, 02:53
1
This post received
KUDOS
Expert's post
enigma123 wrote:
Attachment:

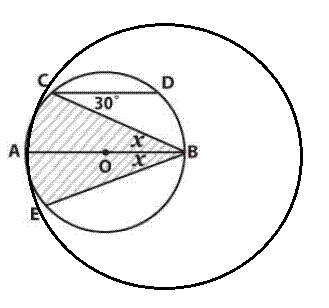

In the figure, circle O has center O, diameter AB and a radius of 5. Line CD is parallel to the diameter. What is the perimeter of the shaded region?

A. (5/3)pi + 5√3
B. (5/3) pi + 10√3
C. (10/3) pi + 5√3
D. (10/3) pi + 10√3
E. (10/3) pi + 20√3

I can think of few pointers such as

The value of x will be 30 degrees because CD is parallel to diameter. Angle COA and AOE will each be 60 degrees as the central angle is double the inscribed angle. But I am still struggling to get through the question.


CD and AB are parallel so x = 30 degrees since they are alternate interior angles.

Angle CBE is 2*30 = 60 degrees. This means arc CE subtends a central angle of 120 degrees (Central angle is twice the angle subtended at the circumference).

So arc CE is one third of the circumference of the circle.
Circumference of the circle \(= 2 *\pi * r = 10 * \pi\)

Length of arc CE \(= (10/3) * \pi\)

Since angle CBE is 60 degrees, triangle CBE is equilateral.
As discussed in the post given below:
https://www.veritasprep.com/blog/2013/0 ... relations/

The ratio of side of the equilateral triangle inscribed in a circle and the radius of the circle \(= a : r = \sqrt{3}:1\)
So \(BC = BE = 5*\sqrt{3}\)

\(Perimeter = (10/3) * \pi + 10*\sqrt{3}\)

Answer (D)
_________________

Karishma
Veritas Prep | GMAT Instructor
My Blog

Get started with Veritas Prep GMAT On Demand for $199

Veritas Prep Reviews

Non-Human User
User avatar
Joined: 09 Sep 2013
Posts: 6641
Premium Member
Re: In the figure, circle O has center O, diameter AB and a radius of 5. [#permalink]

Show Tags

New post 07 Apr 2018, 04:07
Hello from the GMAT Club BumpBot!

Thanks to another GMAT Club member, I have just discovered this valuable topic, yet it had no discussion for over a year. I am now bumping it up - doing my job. I think you may find it valuable (esp those replies with Kudos).

Want to see all other topics I dig out? Follow me (click follow button on profile). You will receive a summary of all topics I bump in your profile area as well as via email.
_________________

GMAT Books | GMAT Club Tests | Best Prices on GMAT Courses | GMAT Mobile App | Math Resources | Verbal Resources

Re: In the figure, circle O has center O, diameter AB and a radius of 5.   [#permalink] 07 Apr 2018, 04:07

Go to page   Previous    1   2   [ 36 posts ]

Display posts from previous: Sort by

In the figure, circle O has center O, diameter AB and a radius of 5.

  new topic post reply Question banks Downloads My Bookmarks Reviews Important topics


GMAT Club MBA Forum Home| About| Terms and Conditions| GMAT Club Rules| Contact| Sitemap

Powered by phpBB © phpBB Group | Emoji artwork provided by EmojiOne

Kindly note that the GMAT® test is a registered trademark of the Graduate Management Admission Council®, and this site has neither been reviewed nor endorsed by GMAC®.
