Question

Given the two lines y = 2x + 5 and y = 2x - 10, what is the area of the largest circle that can be inscribed such that it is tangent to both lines

A.  \frac{45}{4}*\pi

B.  2\sqrt{45}\pi

C.  27\pi

D.  27\sqrt{2}\pi

E.  45\pi

BrushMyQuant · Accepted Answer

↧↧↧ Detailed Video Explanation to the Problem ↧↧↧

https://www.youtube.com/watch?v=loMz6iO_F-c

Given the two lines y = 2x + 5 and y = 2x - 10, what is the area of the largest circle that can be inscribed such that it is tangent to both lines

Diameter of the circle will be equal to the distance between these two parallel tangents.

Distance between parallel lines is given by the formula
d =  \frac{|C_1–C_2|}{\sqrt{}(A^2+B^2)}

Here  C_1  = 5,  C_2 =-10
A = 2
B = -1

So, d =  \frac{|5–(-10)|}{\sqrt{}(2^2+(-1)^2)}  =  \frac{|15|}{\sqrt{}5}  =  \frac{3 * 5}{\sqrt{}5}
=> d =  3\sqrt{}5

=> Area =  \frac{(\pi * d^2)}{4}
=  \pi * \frac{(3\sqrt{}5)^2}{ 4}
=  \frac{45 \pi}{4}

So,  Answer will be A
Hope it helps!

Watch the following video to Learn Basics of Circles

https://www.youtube.com/watch?v=vDtyMOcDlCU

EvaJager · Answer

Even if you don't know the formula for the distance between two parallel lines, you can figure it out.

The two lines are parallel, having the same slope 2.
A circle tangent to both lines will have the diameter equal to the distance between the two lines. To find this distance,
take the perpendicular from the origin to each of the lines.
The origin and the x-intercept and the y-intercept of the line  y = 2x - 10  form a right triangle with legs 5 and 10 and hypotenuse  5\sqrt{5} .
Therefore, the height corresponding to the hypotenuse is  10\cdot{5}/5\sqrt{5}=2\sqrt{5}  (use the formula height = leg*leg/hypotenuse).
The distance between the origin and the line  y = 2x + 5  is half of the distance between the origin and the line  y = 2x - 10 , because the x-intercept and the y-intercept of the line  y = 2x + 5  are -5/2 and 5, which with the origin, form a right triangle similar to the right triangle discussed above.

So, the diameter of the circle is  3\sqrt{5}  and the area of the circle is  \pi\cdot9\cdot{5}/4=(45/4)\pi .

Arthur1000 · Answer

My answer by using first principles and not the A and B formula

Given the two lines y = 2x + 5 and y = 2x - 10, what is the area of the largest circle that can be inscribed such that it is tangent to both lines

The first thing to use is the perpendicular bi-sector between the two lines. If y=2x is the gradient of the lines, then y= -1/2x is the gradient of the bisector.

Step 1, solve the two simultaneous equations in order to find the vectors of the line you seek.

y=2x+5
y= -1/2x
x = -2
Subbing -2 into y=2x+5=1
So co-ord 1 is (-2,1)

Next
y=2x-10
y=-1/2x
x=4
Subbing 4 into y=2x-10=-2
Co-ord to is (4,-2)

Now you have a pythagorus equation
 Triangle base = 6
Triangle height = 3

Hypotenuse (the diameter of the circle) ^2 = 36 + 9
Hyp= diameter = sqrt(45)
Radius = Sqrt(45)/2
Area = Pi x r^2
=45/4 x pi

IanSolo · Answer

nktdotgupta I have tried to solve with your way, but when I try to calculate d I receive another result:  d = \frac{15}{\sqrt{5}}
Then I divide d with 2 for find r and eventually I elevate r^2 and moltiplicate with pie, but the result is different.
I'm not able to find the error.

EvaJager · Answer

\frac{15}{\sqrt{5}}=\frac{15\sqrt{5}}{\sqrt{5}\sqrt{5}}=\frac{15\sqrt{5}}{5}=3\sqrt{5}  which is the same as  \sqrt{9\cdot{5}}=\sqrt{45} .

BrushMyQuant · Answer

d = 15/sqrt5 = 3sqrt5

area = (pie * d^2)/4
= (pie * (3sqrt5)^2)/4
= (pie * 45/4)

hope it helps!

Archit143 · Answer

Hi

a very fundamental problem with the explanation.

Had the two eqns of the form

y-2x-5 = 0
and y - 2x +10 =0

which is same to the above eqn, should the eqn be converted to y = mx + c form for getting c1 and c2

i.e the eqn Ax + By + C = 0 needs to be converted to form y = mx+ c or not.

GMAT40 · Answer

to clarify what nkdotgupta wrote

write the equation in the form of ax+by+c

Eq 1. y = 2x + 5 can be written as 2x-y+5 = 0 which makes a = 2 b = -1 and c1 = 5

Eq 2. y = 2x - 10 can be written as 2x-y-10 = 0 which makes a = 2 b = -1 and c2 = -10

hope this helps..

desaichinmay22 · Answer

Point (0,5) satisfies equation y=2x+5
Point (5,0) satisfies equation y=2x-10
Take (0,0) to form a right triangle with points (0,5) and (5,0)
Height of triangle= distance between (0,0) and (0,5) = 5
Base of triangle=distance between (0,0) and (5,0) = 5
Therefore hypotenuse =5\sqrt{2}
That is the diameter of the circle.
Area of circle= pi*r^2
=pi*(5\sqrt{2}/2)^2
=pi*50/4

Can anyone explain what am I missing in this approach.

Bunuel · Answer

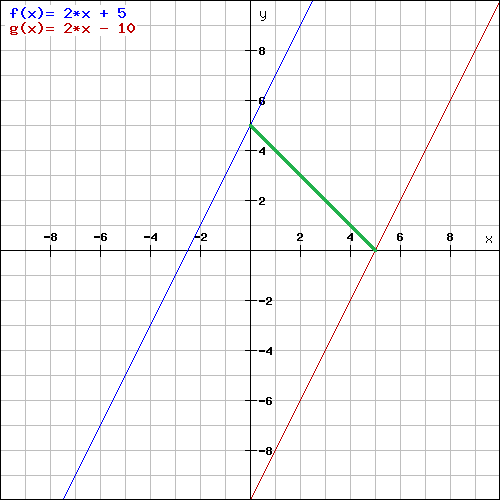

The point is that a circle tangent to both those lines must have the diameter equal to the distance between the two lines. The distance between two parallel lines is the length of perpendicular from one to another, while line segment joining (5,0) and (0,5) is NOT perpendicular to the lines: Untitled.png So, this line segment cannot be the diameter of the circle. Hope it's clear.

Temurkhon · Answer

I used the following formula to find distance between lines:
|ax+by+c|/sqrt(a^2+b^2), got 15/sqrt5,
halved and got 15/2*(sqrt5),
squared it to get 45/4pi

But it took more than 5 min. to solve

arunspanda · Answer

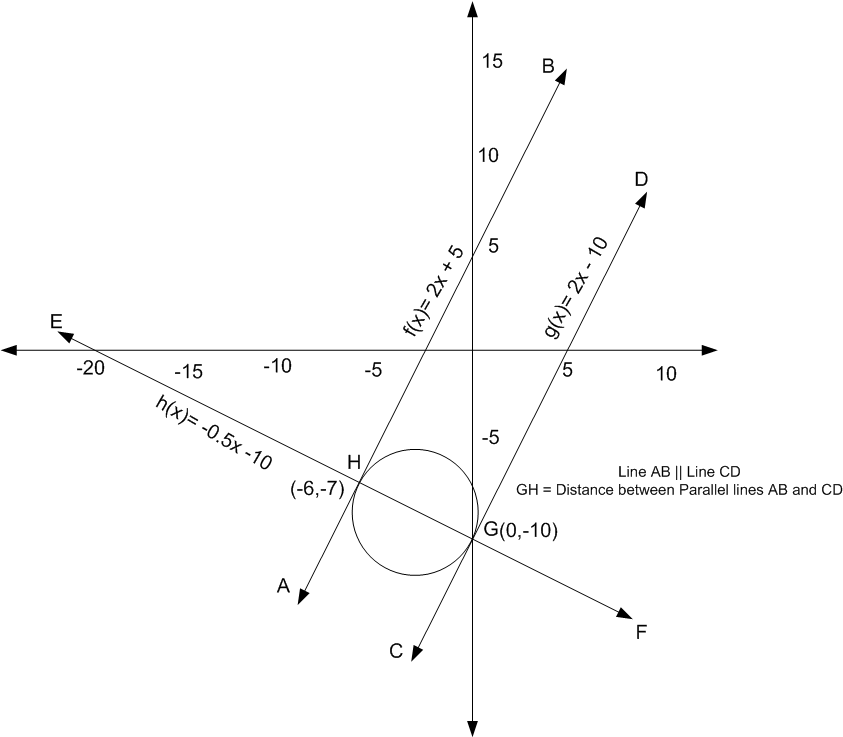

Graphical approach:

Straight lines with equation f(x) = 2x + 5 and g(x) = 2x - 10 are parallel; slope of each line equal to 2.

Co-ordinate of y-intercepts of lines f(x) and g(x) are (0,5) and (0,-10)

Equation of the line perpendicular to f(x) and g(x) and passing through y-intercept of g(x):h(x) = -(1/2)x-10

Point of intersection between h(x) and f(x) : (-6,-7)
 2x+5=\frac{-1}{2}x-10  or x =-6  and  y=-7 ]

Distance between parallel lines = Distance between (-6,-7) and (0,-10) =  \sqrt{( -10+7)^2+(0+6)^2}  =3\sqrt{5}

Largest circle that can be inscribed between lines f(x) and g(x) must have the diameter equal to the distance between these two lines =  3\sqrt{5}

Area of the circle =  \pi*(3\sqrt{5}/2)^2= \frac{45}{4}*\pi

Answer:  (A)

mvictor · Answer

wow..this problem is a nightmare..i guessed it..but tried to solve it for more than half an hour...
I picked A, because it is written in X/4 pi.
I knew that one point from one line to the other point on the other line would form the diameter.
to find the radius, we need to divide it by 2.
the area would be (d/2)^2 or d^2 / 4
I did not know how to solve, so picked A, as it had /4...

stonecold · Answer

Here is my approach => The two lines have equal slopes => must be parallel.
Now the diameter of the circle that is tangent to both => distance between the 2 || lines => |C1-C2|/√(A^2+B^2)
so the distance => 15/√5 => 3√5 => Radius = 3√5/2 => area =45/4 * pie => A is correct

akhan126 · Answer

Therefore, the height corresponding to the hypotenuse is  10\cdot{5}/5\sqrt{5}=2\sqrt{5}  (use the formula height = leg*leg/hypotenuse).
Could you explain this step?
What do you mean the height corresponding to the hypotenuse?

gps5441 · Answer

Can you explain what is A & B. I checked the link but could not get it.

tapasgupta · Answer

A and B are the constant values of the variables x and y respectively.

subsauce · Answer

There are two ways I can think of to solve this problem.

1)

The distance between two parallel lines is given by the equation |B-C| / (M^2 + 1)^0.5

where
line 1 is Y= MX + B
and line 2 is Y=MX + C

Thus here, we get |5-(-10)| / (2^2 + 1)^.5

or 15/(5^.5)

This is the diameter of the circle so, 15/2(5^.5) = radius

Pi*R^2 = area, Pi * (15/2(5^.5))^2 = Pi * 225/20 = Pi*45/4

2)

To find the distance between the two lines we need to find the perpendicular line. Because the slop is 2, the perpendicular line will have a slope of -.5.

Starting at the y-intecept, we get Y=-.5X + 5. This line crosses the first line at the y-intecept.

Then set this line equal to the second line to get where they cross.
-.5X + 5 = 2X -10.
15 = 2.5x
X = 6

Plug 6 into the equation to find that Y, 2.

So we now how the bases of a triangle. from 2 to 5, = 3 and from 0 to 6 = 6. Thus from the Pythagorean theorem (6^2 + 3^2)^.5, we get a hypotenuse of 45^.5

The hypotenuse is the diameter of the circle, so (45^.5)/2 is the radius.

Pi * R^2 = Area
Pi * ((45^.5)/2)^2
Pi * 45/4

Mehemmed · Answer

Could you please tell how to find A=2 and B=-1?
