# In the figure, point D divides side BC of triangle ABC into segments

Author Message
TAGS:

### Hide Tags

Director
Status: Finally Done. Admitted in Kellogg for 2015 intake
Joined: 25 Jun 2011
Posts: 510
Location: United Kingdom
GMAT 1: 730 Q49 V45
GPA: 2.9
WE: Information Technology (Consulting)
In the figure, point D divides side BC of triangle ABC into segments  [#permalink]

### Show Tags

Updated on: 06 Apr 2018, 04:44
32
1
237
00:00

Difficulty:

95% (hard)

Question Stats:

25% (02:56) correct 75% (02:33) wrong based on 3800 sessions

### HideShow timer Statistics

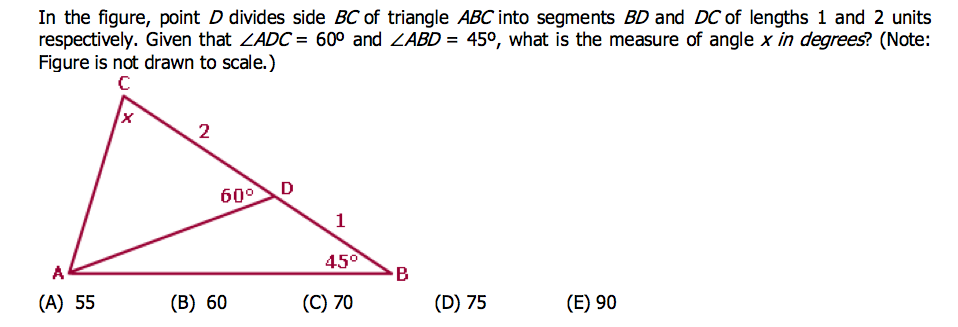

In the figure, point D divides side BC of triangle ABC into segments BD and DC of lengths 1 and 2 units respectively. Given that ÐADC = 60º and ÐABD = 45º, what is the measure of angle x in degrees? (Note: Figure is not drawn to scale.)

A. 55
B. 60
C. 70
D. 75
E. 90

Attachment:

Triangle.png [ 9.63 KiB | Viewed 96039 times ]

Attachment:

task%236.png [ 50.38 KiB | Viewed 11404 times ]

_________________

Best Regards,
E.

MGMAT 1 --> 530
MGMAT 2--> 640
MGMAT 3 ---> 610
GMAT ==> 730

Originally posted by enigma123 on 01 Feb 2012, 16:32.
Last edited by Bunuel on 06 Apr 2018, 04:44, edited 3 times in total.
Attached the image.
Math Expert
Joined: 02 Sep 2009
Posts: 48037
Re: In the figure, point D divides side BC of triangle ABC into segments  [#permalink]

### Show Tags

01 Feb 2012, 17:57
60
56
enigma123 wrote:

In the figure, point D divides side BC of triangle ABC into segments BD and DC of lengths 1 and 2 units respectively. Given that ÐADC = 60º and ÐABD = 45º, what is the measure of angle x in degrees? (Note:
Figure is not drawn to scale.)

(A) 55
(B) 60
(C) 70
(D) 75
(E) 90

Any idea guys what will be the correct answer please? Also any idea how can I cut and paste the pictures in my post? Is it possible?

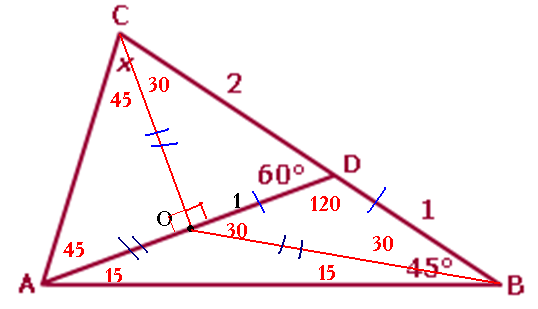

Complete solution for all the angles is in the image below:

x=45+30=75.

Notes:
Sides with one blue segment crossing them are equal and sides with two blues segments crossing them are equal too.

CO is perpendicular to AD --> OD=1 (from 30-60-90 right triangle property as sides are in ratio $$1:\sqrt{3}:2$$) --> as OD=BD=1 then ODB is an isosceles triangle.

<CDO and <BDO are supplementary to each other (supplementary angles are two angles that add up to 180°), so <BDO=120 --> <DAB=180-(120+45)=15.

As ODB is an isosceles triangle --> <DOB=<DBO=30. <OBA=45-30=15 --> AOB is an isosceles triangle, so OA=OB. Also COB is an isosceles triangle, so CO=OB --> OA=CO=OB. So, AOC is an isosceles triangle --> <CAO=<OCA=45 (as <COA=90) --> x=45+30=75.

P.S. You can attach image files directly to the post.

Attachment:

Triangle complete.PNG [ 36.32 KiB | Viewed 97023 times ]

_________________
Intern
Joined: 15 May 2013
Posts: 6
Re: In the figure, point D divides side BC of triangle ABC into segments  [#permalink]

### Show Tags

24 Jun 2013, 11:41
23
7
say angle CAB=y
since sum of angles in a triangle is 180
x+y+45=180
x+y=135 equation 1

line AD is dividing BC in 2:1 ratio
hence
X+2/3Y+60=180
X+2/3y=120 equation 2
solving equation 1 &2 we get x=75
##### General Discussion
Intern
Joined: 23 Aug 2012
Posts: 12
Re: In the figure, point D divides side BC of triangle ABC into segments  [#permalink]

### Show Tags

18 Sep 2012, 00:07
Bunuel wrote:
enigma123 wrote:
In the figure, point D divides side BC of triangle ABC into segments BD and DC of lengths 1 and 2 units respectively. Given that ÐADC = 60º and ÐABD = 45º, what is the measure of angle x in degrees? (Note:
Figure is not drawn to scale.)

(A) 55
(B) 60
(C) 70
(D) 75
(E) 90

Any idea guys what will be the correct answer please? Also any idea how can I cut and paste the pictures in my post? Is it possible?

Complete solution for all the angles is in the image below:
Attachment:
Triangle complete.PNG
x=45+30=75.

Notes:
Sides with one blue segment crossing them are equal and sides with two blues segments crossing them are equal too.

CO is perpendicular to AD --> OD=1 (from 30-60-90 right triangle property as sides are in ratio $$1:\sqrt{3}:2$$) --> as OD=BD=1 then ODB is an isosceles triangle.

<CDO and <BDO are supplementary to each other (supplementary angles are two angles that add up to 180°), so <BDO=120 --> <DAB=180-(120+45)=15. As ODB is an isosceles triangle --> <DOB=<DBO=30. <OBA=45-30=15 --> AOB is an isosceles triangle, so OA=OB also COB is an isosceles triangle, so CO=OB --> OA=CO=OB. So, AOC is an isosceles triangle --> <CAO=<OCA=45 (as <COA=90) --> x=45+30=75.

P.S. You can attach image files directly to the post.

Thanks for the explanation Bunuel. However, I just want to ask for a bit of a clarification. I understand how we create the 30-60-90 triangle to find the solution, but we only do this because the problem clues us in to try this out, not because it has to be true. For example, what if x was less than 30? All we have is B=45 and A=15+some angle. The problem says figure is not drawn to scale, so why should we assume that CO is perpendicular to AD? We don't actually know that any of our assumptions hold until the very end when we see that all of the sides and angles do, in fact, work out, right?

I hope my confusion makes some sense. I guess I tend to have a problem with making such assumptions, especially when the figure is not drawn to scale. I always am afraid that I'm going to assume something that isn't necessarily true.
Math Expert
Joined: 02 Sep 2009
Posts: 48037
Re: In the figure, point D divides side BC of triangle ABC into segments  [#permalink]

### Show Tags

18 Sep 2012, 01:13
1
dandarth1 wrote:
Bunuel wrote:
enigma123 wrote:
In the figure, point D divides side BC of triangle ABC into segments BD and DC of lengths 1 and 2 units respectively. Given that ÐADC = 60º and ÐABD = 45º, what is the measure of angle x in degrees? (Note:
Figure is not drawn to scale.)

(A) 55
(B) 60
(C) 70
(D) 75
(E) 90

Any idea guys what will be the correct answer please? Also any idea how can I cut and paste the pictures in my post? Is it possible?

Complete solution for all the angles is in the image below:
Attachment:
Triangle complete.PNG
x=45+30=75.

Notes:
Sides with one blue segment crossing them are equal and sides with two blues segments crossing them are equal too.

CO is perpendicular to AD --> OD=1 (from 30-60-90 right triangle property as sides are in ratio $$1:\sqrt{3}:2$$) --> as OD=BD=1 then ODB is an isosceles triangle.

<CDO and <BDO are supplementary to each other (supplementary angles are two angles that add up to 180°), so <BDO=120 --> <DAB=180-(120+45)=15. As ODB is an isosceles triangle --> <DOB=<DBO=30. <OBA=45-30=15 --> AOB is an isosceles triangle, so OA=OB also COB is an isosceles triangle, so CO=OB --> OA=CO=OB. So, AOC is an isosceles triangle --> <CAO=<OCA=45 (as <COA=90) --> x=45+30=75.

P.S. You can attach image files directly to the post.

Thanks for the explanation Bunuel. However, I just want to ask for a bit of a clarification. I understand how we create the 30-60-90 triangle to find the solution, but we only do this because the problem clues us in to try this out, not because it has to be true. For example, what if x was less than 30? All we have is B=45 and A=15+some angle. The problem says figure is not drawn to scale, so why should we assume that CO is perpendicular to AD? We don't actually know that any of our assumptions hold until the very end when we see that all of the sides and angles do, in fact, work out, right?

I hope my confusion makes some sense. I guess I tend to have a problem with making such assumptions, especially when the figure is not drawn to scale. I always am afraid that I'm going to assume something that isn't necessarily true.

_________________
Intern
Joined: 23 Aug 2012
Posts: 12
Re: In the figure, point D divides side BC of triangle ABC into segments  [#permalink]

### Show Tags

18 Sep 2012, 11:44
I guess what I'm saying is, what if CA was perpendicular to AD? Then making a new point CO that is perpendicular to AD couldn't be possible, unless O was equal to A. Therefore, aren't we making an unwarranted assumption that CA is not perpendicular to AD?
Intern
Joined: 23 Aug 2012
Posts: 12
Re: In the figure, point D divides side BC of triangle ABC into segments  [#permalink]

### Show Tags

18 Sep 2012, 11:46
Bunuel wrote:
of lengths 1 and 2 units respectively. Given that ÐADC = 60º and ÐABD = 45º, what is the measure of angle x in degrees? (Note:
Figure is not drawn to scale.)

(A) 55
(B) 60
(C) 70
(D) 75
(E) 90

Any idea guys what will be the correct answer please? Also any idea how can I cut and paste the pictures in my post? Is it possible?

Complete solution for all the angles is in the image below:
Attachment:
Triangle complete.PNG
x=45+30=75.

Notes:
Sides with one blue segment crossing them are equal and sides with two blues segments crossing them are equal too.

CO is perpendicular to AD --> OD=1 (from 30-60-90 right triangle property as sides are in ratio $$1:\sqrt{3}:2$$) --> as OD=BD=1 then ODB is an isosceles triangle.

<CDO and <BDO are supplementary to each other (supplementary angles are two angles that add up to 180°), so <BDO=120 --> <DAB=180-(120+45)=15. As ODB is an isosceles triangle --> <DOB=<DBO=30. <OBA=45-30=15 --> AOB is an isosceles triangle, so OA=OB also COB is an isosceles triangle, so CO=OB --> OA=CO=OB. So, AOC is an isosceles triangle --> <CAO=<OCA=45 (as <COA=90) --> x=45+30=75.

P.S. You can attach image files directly to the post.

Thanks for the explanation Bunuel. However, I just want to ask for a bit of a clarification. I understand how we create the 30-60-90 triangle to find the solution, but we only do this because the problem clues us in to try this out, not because it has to be true. For example, what if x was less than 30? All we have is B=45 and A=15+some angle. The problem says figure is not drawn to scale, so why should we assume that CO is perpendicular to AD? We don't actually know that any of our assumptions hold until the very end when we see that all of the sides and angles do, in fact, work out, right?

I hope my confusion makes some sense. I guess I tend to have a problem with making such assumptions, especially when the figure is not drawn to scale. I always am afraid that I'm going to assume something that isn't necessarily true.

I guess what I'm saying is, what if CA was perpendicular to AD? Then making a new point CO that is perpendicular to AD couldn't be possible, unless O was equal to A. Therefore, aren't we making an unwarranted assumption that CA is not perpendicular to AD?
Senior Manager
Joined: 22 Dec 2011
Posts: 267
Re: In the figure, point D divides side BC of triangle ABC into segments  [#permalink]

### Show Tags

03 Nov 2012, 02:10
Bunuel wrote:
Complete solution for all the angles is in the image below:
Attachment:
Triangle complete.PNG
x=45+30=75.

Notes:
Sides with one blue segment crossing them are equal and sides with two blues segments crossing them are equal too.

CO is perpendicular to AD --> OD=1 (from 30-60-90 right triangle property as sides are in ratio $$1:\sqrt{3}:2$$) --> as OD=BD=1 then ODB is an isosceles triangle.

<CDO and <BDO are supplementary to each other (supplementary angles are two angles that add up to 180°), so <BDO=120 --> <DAB=180-(120+45)=15. As ODB is an isosceles triangle --> <DOB=<DBO=30. <OBA=45-30=15 --> AOB is an isosceles triangle, so OA=OB also COB is an isosceles triangle, so CO=OB --> OA=CO=OB. So, AOC is an isosceles triangle --> <CAO=<OCA=45 (as <COA=90) --> x=45+30=75.

P.S. You can attach image files directly to the post.

Bunuel - Can we not use exterior angle property

for triangle ACD
Angle at C = x
<CDA = 60
Since sum of all the angle of triangle is 180 then we

<CAD + <CDA + x = 180

For the other triangle we know
<DAC = 15
<DBA =45

Exterior angle is sum of opp interior angle and not adjacent to it
120 -x = 120 + 45
x = 45.

Since this is not the ans could you please let me know what I'm doing wrong here?

Many thanks.

Cheers
Math Expert
Joined: 02 Sep 2009
Posts: 48037
Re: In the figure, point D divides side BC of triangle ABC into segments  [#permalink]

### Show Tags

03 Nov 2012, 02:23
Jp27 wrote:
Bunuel wrote:
Complete solution for all the angles is in the image below:
Attachment:
The attachment Triangle complete.PNG is no longer available
x=45+30=75.

Notes:
Sides with one blue segment crossing them are equal and sides with two blues segments crossing them are equal too.

CO is perpendicular to AD --> OD=1 (from 30-60-90 right triangle property as sides are in ratio $$1:\sqrt{3}:2$$) --> as OD=BD=1 then ODB is an isosceles triangle.

<CDO and <BDO are supplementary to each other (supplementary angles are two angles that add up to 180°), so <BDO=120 --> <DAB=180-(120+45)=15. As ODB is an isosceles triangle --> <DOB=<DBO=30. <OBA=45-30=15 --> AOB is an isosceles triangle, so OA=OB also COB is an isosceles triangle, so CO=OB --> OA=CO=OB. So, AOC is an isosceles triangle --> <CAO=<OCA=45 (as <COA=90) --> x=45+30=75.

P.S. You can attach image files directly to the post.

Bunuel - Can we not use exterior angle property

for triangle ACD
Angle at C = x
<CDA = 60
Since sum of all the angle of triangle is 180 then we

<CAD + <CDA + x = 180

For the other triangle we know
<DAC = 15
<DBA =45

Exterior angle is sum of opp interior angle and not adjacent to it
120 -x = 120 + 45
x = 45.

Since this is not the ans could you please let me know what I'm doing wrong here?

Many thanks.

Cheers

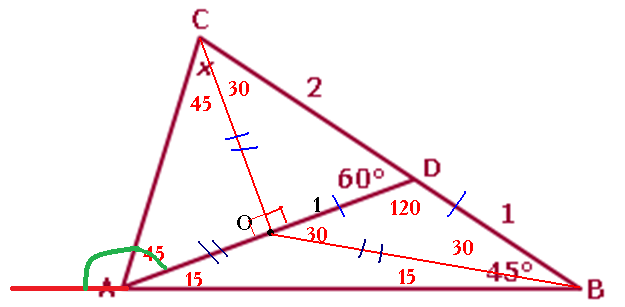

<CAD is not exterior angle of <DAB. Exterior angle for <DAB is given below in green:
Attachment:

Exterior.png [ 44.25 KiB | Viewed 84110 times ]
Hope it's clear.
_________________
Manager
Status: Trying.... & desperate for success.
Joined: 17 May 2012
Posts: 68
Location: India
Schools: NUS '15
GPA: 2.92
WE: Analyst (Computer Software)
Re: In the figure, point D divides side BC of triangle ABC into segments  [#permalink]

### Show Tags

19 Jun 2013, 04:31
enigma123 wrote:
In the figure, point D divides side BC of triangle ABC into segments BD and DC of lengths 1 and 2 units respectively. Given that ÐADC = 60º and ÐABD = 45º, what is the measure of angle x in degrees? (Note:
Figure is not drawn to scale.)

A. 55
B. 60
C. 70
D. 75
E. 90

Any idea guys what will be the correct answer please? Also any idea how can I cut and paste the pictures in my post? Is it possible?

Is it correct to tell that <CAD : <BAD = 2:1 because,
CD:DB = 2:1?
Math Expert
Joined: 02 Sep 2009
Posts: 48037
Re: In the figure, point D divides side BC of triangle ABC into segments  [#permalink]

### Show Tags

20 Jun 2013, 04:04
1
navigator123 wrote:
enigma123 wrote:
In the figure, point D divides side BC of triangle ABC into segments BD and DC of lengths 1 and 2 units respectively. Given that ÐADC = 60º and ÐABD = 45º, what is the measure of angle x in degrees? (Note:
Figure is not drawn to scale.)

A. 55
B. 60
C. 70
D. 75
E. 90

Any idea guys what will be the correct answer please? Also any idea how can I cut and paste the pictures in my post? Is it possible?

Is it correct to tell that <CAD : <BAD = 2:1 because,
CD:DB = 2:1?

Nope, that's not correct. Check the images provided above.
_________________
Manager
Joined: 24 Nov 2012
Posts: 170
Concentration: Sustainability, Entrepreneurship
GMAT 1: 770 Q50 V44
WE: Business Development (Internet and New Media)
Re: In the figure, point D divides side BC of triangle ABC into segments  [#permalink]

### Show Tags

25 Jun 2013, 10:10
Bunuel wrote:
--> AOB is an isosceles triangle, so OA=OB also COB is an isosceles triangle, so CO=OB --> OA=CO=OB. So, AOC is an isosceles triangle --> <CAO=<OCA=45 (as <COA=90) --> x=45+30=75.

.

I lost you from here. How do you know that angle cab is 45+15?
_________________

You've been walking the ocean's edge, holding up your robes to keep them dry. You must dive naked under, and deeper under, a thousand times deeper! - Rumi

http://www.manhattangmat.com/blog/index.php/author/cbermanmanhattanprep-com/ - This is worth its weight in gold

Economist GMAT Test - 730, Q50, V41 Aug 9th, 2013
Manhattan GMAT Test - 670, Q45, V36 Aug 11th, 2013
Manhattan GMAT Test - 680, Q47, V36 Aug 17th, 2013
GmatPrep CAT 1 - 770, Q50, V44 Aug 24th, 2013
Manhattan GMAT Test - 690, Q45, V39 Aug 30th, 2013
Manhattan GMAT Test - 710, Q48, V39 Sep 13th, 2013
GmatPrep CAT 2 - 740, Q49, V41 Oct 6th, 2013

GMAT - 770, Q50, V44, Oct 7th, 2013
My Debrief - http://gmatclub.com/forum/from-the-ashes-thou-shall-rise-770-q-50-v-44-awa-5-ir-162299.html#p1284542

Math Expert
Joined: 02 Sep 2009
Posts: 48037
Re: In the figure, point D divides side BC of triangle ABC into segments  [#permalink]

### Show Tags

25 Jun 2013, 10:53
1
Transcendentalist wrote:
Bunuel wrote:
--> AOB is an isosceles triangle, so OA=OB also COB is an isosceles triangle, so CO=OB --> OA=CO=OB. So, AOC is an isosceles triangle --> <CAO=<OCA=45 (as <COA=90) --> x=45+30=75.

.

I lost you from here. How do you know that angle cab is 45+15?

<CDO and <BDO are supplementary to each other (supplementary angles are two angles that add up to 180°), so <BDO=120 --> <DAB=180-(120+45)=15. As ODB is an isosceles triangle --> <DOB=<DBO=30. <OBA=45-30=15 --> AOB is an isosceles triangle, so OA=OB also COB is an isosceles triangle, so CO=OB --> OA=CO=OB. So, AOC is an isosceles triangle --> <CAO=<OCA=45 (as <COA=90) --> x=45+30=75.

<CAB = <DAB + <CAO = 15 + 45.
_________________
Manager
Joined: 11 Aug 2012
Posts: 122
Schools: HBS '16, Stanford '16
Re: In the figure, point D divides side BC of triangle ABC into segments  [#permalink]

### Show Tags

11 Aug 2013, 11:15
1
Bunuel,

How can we know that we had to draw a perpendicular line from vertex C? , Why not from vertex D?, for example?

Thanks!
Senior Manager
Joined: 10 Jul 2013
Posts: 316
Re: In the figure, point D divides side BC of triangle ABC into segments  [#permalink]

### Show Tags

13 Aug 2013, 09:57
9
5
Transcendentalist wrote:
Bunuel wrote:
--> AOB is an isosceles triangle, so OA=OB also COB is an isosceles triangle, so CO=OB --> OA=CO=OB. So, AOC is an isosceles triangle --> <CAO=<OCA=45 (as <COA=90) --> x=45+30=75.

.

I lost you from here. How do you know that angle cab is 45+15?

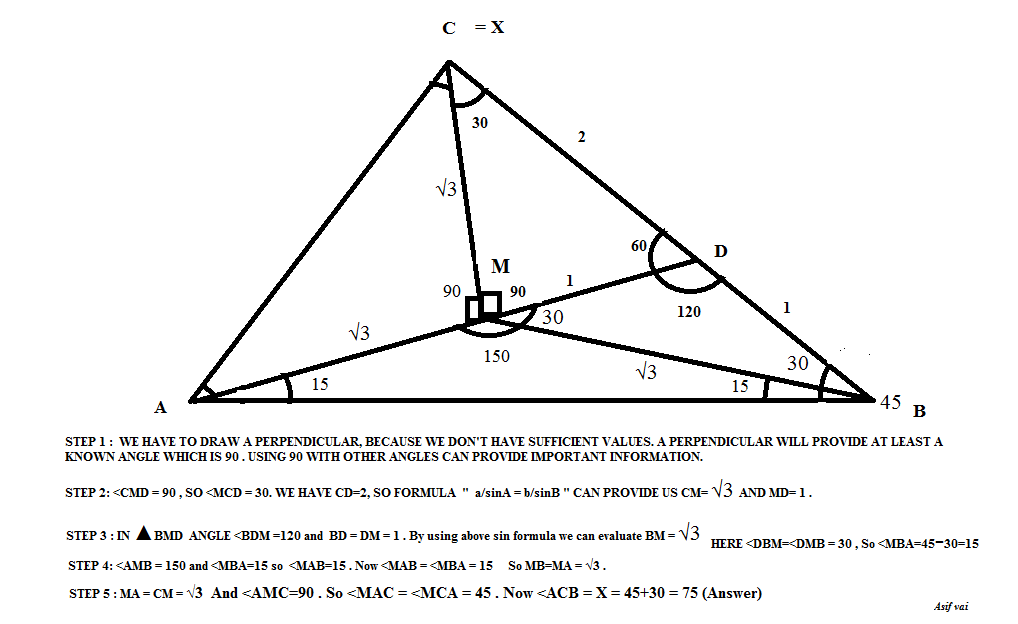

step by step using this diagram can help to understand:
Attachments

TRIANGLE.png [ 39.43 KiB | Viewed 82148 times ]

_________________

Asif vai.....

Senior Manager
Joined: 10 Jul 2013
Posts: 316
Re: In the figure, point D divides side BC of triangle ABC into segments  [#permalink]

### Show Tags

13 Aug 2013, 12:39
Asifpirlo wrote:
Transcendentalist wrote:
Bunuel wrote:
--> AOB is an isosceles triangle, so OA=OB also COB is an isosceles triangle, so CO=OB --> OA=CO=OB. So, AOC is an isosceles triangle --> <CAO=<OCA=45 (as <COA=90) --> x=45+30=75.

.

I lost you from here. How do you know that angle cab is 45+15?

step by step using this diagram can help to understand:

Hmmmmm hope this can clarify the fact..........................
_________________

Asif vai.....

Manager
Joined: 04 Jan 2014
Posts: 111
Re: In the figure, point D divides side BC of triangle ABC into segments  [#permalink]

### Show Tags

19 May 2014, 07:05
hi Bunnel,

How can we be sure that AO is equals to CO?
Math Expert
Joined: 02 Sep 2009
Posts: 48037
Re: In the figure, point D divides side BC of triangle ABC into segments  [#permalink]

### Show Tags

19 May 2014, 07:31
1
pretzel wrote:
hi Bunnel,

How can we be sure that AO is equals to CO?

ODB is an isosceles triangle --> <DOB=<DBO=30. <OBA=45-30=15 --> AOB is an isosceles triangle, so OA=OB. Also COB is an isosceles triangle, so CO=OB --> OA=CO=OB. So, AOC is an isosceles triangle --> <CAO=<OCA=45 (as <COA=90) --> x=45+30=75.
_________________
Intern
Joined: 17 May 2014
Posts: 40
Re: In the figure, point D divides side BC of triangle ABC into segments  [#permalink]

### Show Tags

19 May 2014, 08:02
enigma123 wrote:
Attachment:
In the figure, point D divides side BC of triangle ABC into segments BD and DC of lengths 1 and 2 units respectively. Given that ÐADC = 60º and ÐABD = 45º, what is the measure of angle x in degrees? (Note:
Figure is not drawn to scale.)

A. 55
B. 60
C. 70
D. 75
E. 90

Any idea guys what will be the correct answer please? Also any idea how can I cut and paste the pictures in my post? Is it possible?

Another approach can be used without using constructions:

Angle DAB = 15
CAD = 180 - 60 - x = 120 -x

Now using sine rules first in triangle ACD and then in triangle ADB

sin x/AD = sin(120-x)/2t ----- 1

sin 45/AD = sin 15/t -----------2

Dividing 1 by 2

sin x/sin 45 = sin(120 -x)/ 2sin 15

Now using options, we need to check:

Now if you put 75 in this, you will see that the equality holds true.

This is a tricky solution though, but if you use a little bit of intuition, you may arrive at a right answer.
Intern
Joined: 26 May 2013
Posts: 2
Re: In the figure, point D divides side BC of triangle ABC into segments  [#permalink]

### Show Tags

15 Nov 2014, 01:05
1
Since DB and CD are in the ratio 1:2 i.e. db= 1/3 of CB & CD= 2/3 of CB. the angle will also be in proportionate value.
angle DAC=1/3 angle CAB.

Now, angle ADB= 180-60 = 120 deg.
=> angle DAB = 15 deg.

So, angle CAB= 45 deg. => angle ACB = 90 deg.
Re: In the figure, point D divides side BC of triangle ABC into segments &nbs [#permalink] 15 Nov 2014, 01:05

Go to page    1   2   3    Next  [ 60 posts ]

Display posts from previous: Sort by

# Events & Promotions

 Powered by phpBB © phpBB Group | Emoji artwork provided by EmojiOne Kindly note that the GMAT® test is a registered trademark of the Graduate Management Admission Council®, and this site has neither been reviewed nor endorsed by GMAC®.
