The square region shown has been partitioned into 5 identical rectangu

Question

https://gmatclub.com/forum/download/file.php?id=30980 The square region shown has been partitioned into 5 identical rectangular regions. If the perimeter of each of the rectangular regions is 30, what is the perimeter of the square region? A) 150 B) 146 C) 120 D) 50 E) 46 Screen Shot 2016-07-14 at 02.25.10.png

LXVE · Accepted Answer

Each rectangular region has a perimeter of 2l + 2w = 30 or l + w = 15.

The whole collection of rectangles is a square, so 5w = l
You can multiply this by 2 to get 10w = 2l and substitute this into our original write up.

10w + 2w = 30 or 12w = 30, w therefore equals 2.5
5 * 2.5 = l = 12.5

12.5 * 4 = perimeter of the whole square

Sent from my SM-G928T using  GMAT Club Forum mobile app

Carolin92 · Answer

You could also simply test the answers:

Start with answer b) 146
146=4x
x=36.5 --> way too long if the perimeter of the small rectangular is 30 only

secondly, test answer d) 50
50=4x
x=12.5 --> Correct!

12.5*2=25; 2.5*2= 5 --> sums up to 30

mitko20m · Answer

Call the smaller side of each rectangular b, and side of square "a".
we know that 2(a+b) = 30 and we also know that b is 1/5 of a.
so 2(a+1/5a)=30
a+1/5a = 15 (multiply both sides by 5)
6a = 80
a = 13 (approximately) then the perimeter would be 4xa = 52 (Answer D is closest)

matsuda · Answer

Answer is exact.

You miscalculated a step (in red):
 a + \frac{a}{5} = 15
 6a = 75
 a = \frac{75}{6}
 P = 4*a = 4*\frac{75}{6} = 50

dcummins · Answer

I think that a lot of people, such as myself, have issues with this question because they miss the "square region shown" statement at the beginning of the stem, allowing someone to make the deductions necessary to solve this.

applicant123456 · Answer

in the event someone is still having trouble like me...

the question directly states that that picture is a square

We can deduce a few things

x= width
y= length

1) 2x+2y = 30 (from the prompt)
2) 5x = Y (because the picture is a square all sides are equal)

Using substitution -

2(x+y)=30
2(6x)=30
X=2.5

if x=2.5 then one side is equal to 5*(2.5) = 12.5

There are 4 sides so 4*12.5 = 50

Basshead · Answer

2(l+w) = 30
l + w = 15

Since the figure is a square we can conclude 5w = l

6w = 15
w = 2.5

5w = 12.5

12.5 * 4 sides = 50

Answer is D.

avigutman · Answer

Each rectangle has a length:width:perimeter ratio of 5:1:12.
To get the perimeter of the square, we can add up the perimeters of the five rectangles, and subtract the four internal lengths twice (each of those internal lengths is counted twice as we add up the rectangles, and we don't want to count them at all).
Since the length of each rectangle is 5/12 of its perimeter (see the ratio above), we must subtract 5/12 of 30, a total of eight times.
 8*(5/12)*30 = (10/3)*30 = 100
Therefore, the square's perimeter is:
 5*30 - 100 = 50

dylanl1218 · Answer

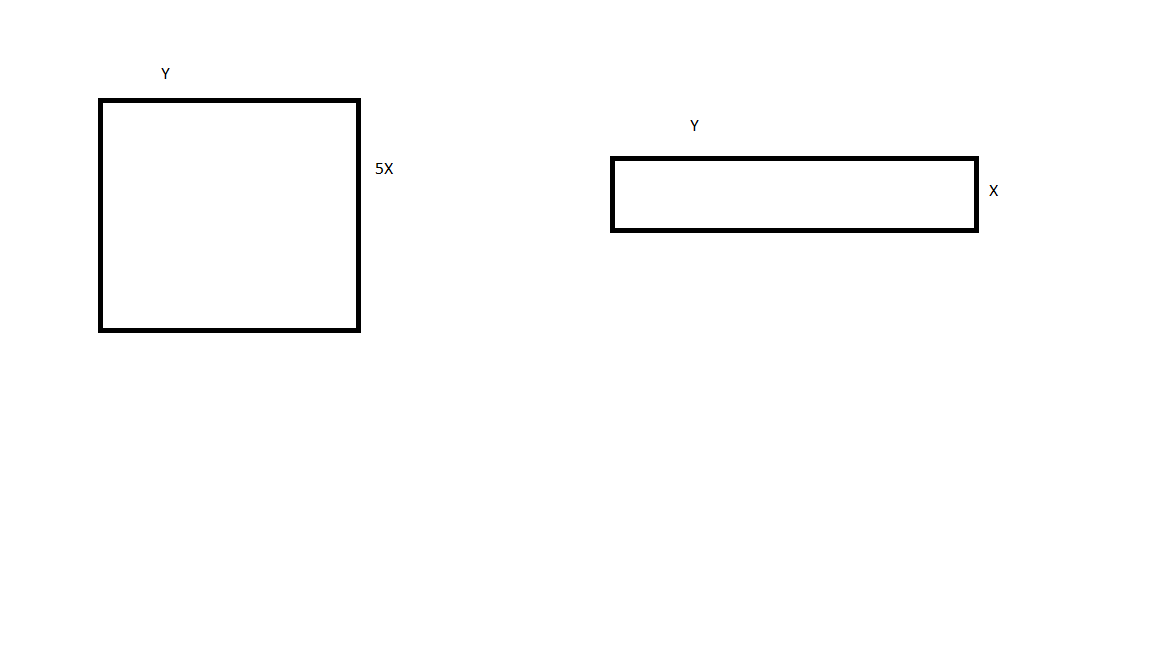

Based off of the stem let's assume the following about respective sides of the square and 5 identical rectangular regions. So this means that we're looking for the value of 10X + 2Y. Let's lay out some equations:

(1) 5X=Y because 5 sides of the given rectangle must be equal to one length of the given rectangle.
(2) 2X+2Y = 30 -> X+Y=15

So now let's use equation (1) to simplify the value we're looking for. If 5X=Y then that means we just need to find 10X + 2(5Y), or 20X. So if we can find the value of X then we can answer this question.

Alright well if X+Y = 15 then X+5X = 15, and then X = 15/6.

So 20(15/6) = 50.

armaankumar · Answer

Given,  2(L+W)=30
=> L+W=15-----------------(1)

We want to know the perimeter of the square:
 Perimeter of square= 4*W or (10L+2W) or (5L+W)*2

*In a square all 4 sides are equal,

Therefore, 5L=W

Plugging this into (1):
=> L+5L=15
 =>L=2.5; W=12.5

Perimeter of Square= 4*w = 4*12.5 = 50.00

P.s:
*When I took the actual practice test, I panicked and tried to solve the question without using that fact.
Was there anyone else who missed that too?

Paras96 · Answer

Let side of square be 5a,

As per given condition, 2(5a+a)=30
=>a=2.5

Perimeter of square=4*5a=20a=50

Hence D
