What percentage of the square's area is shaded?

Question

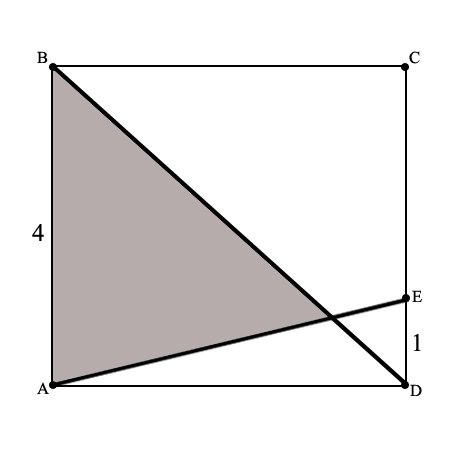

What percentage of the square's area is grey-shaded, with AB = 4 and DE = 1? (see picture)

A: 30%

B: 37,5%

C: 40%

D: 45%

E: 50%

*found it on brilliant.org and I guess it's a tough gmat-style questions

drexxie · Accepted Answer

septwibowo

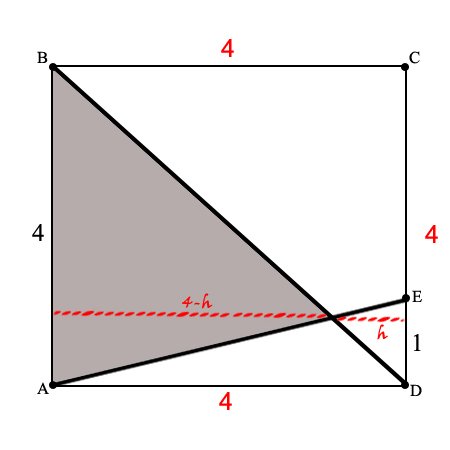

Why the two triangles are indeed similar is shown graphically below.

Angles a, b, and c are identical, making the two triangles similar. Hence, the base to height ratio is similar and we can set up a proportion to find the height:

\dfrac {4-h}{4}=\dfrac {h}{1}

h = 0.8

So, height of the shaded triangle is 3.2 and since we have the base (4) and the height (3.2) we can calculate the area.

3.2 = \dfrac{16}{5}

Area of grey-shaded triangle:

\dfrac {\dfrac{16}{5}	imes 4}{2} = \dfrac{32}{5}

Percentage of the square's area:

\dfrac {\dfrac {32}{5}}{16} = \dfrac{2}{5} ightarrow \dfrac{2}{5}	imes 100 = 40\%

Sasindran · Answer

Option C

The two triangles are proportionate. Hence the height of the shaded triangle is 4/(4+1)*4 =3.2. Hence area of the shaded region =1/2*4*3.2=6.4. The ratio is 6.4/(4*4)*100=40%.

Posted from my mobile device

septwibowo · Answer

Dear  Sasindran  , would u please elaborate more why these triangles are proportionate?

Sasindran · Answer

Sure.

We all know that AB and CD are parallel lines. When two lines intersect between parallel lines the triangles so formed by them are always proportional to each other. Also the distance of intersection from either of the lines are also proportional to the length of the parallel lines.

For our case lets consider the intersecting point as O. Here we have AB=4 and DE=1. Hence by the above theorem we have perpendicular Distance between O and line AB is proportional to the perpendicular distance between O and the line DE.

i.e., AB/DE = per dist between O and AB/per dist between O and DE

4/1=height of triangle ABO/height of triagle DEO
also we know that height of triangle AEO+height of triagle DEO=4 (divided at O in the ratio 4:1)

Hence height of triangle AEO=4/5=3.2
height of triangle DEO=1/5=0.8

Hence area of triangle AEO=1/2*4*3.2=6.4

And you know the remaining  septwibowo

Hope i made clear!

Thanks

Sasindran · Answer

septwibowo Although may find 1000s of resources I am providing one: https://www.varsitytutors.com/hotmath/h ... rtionality

septwibowo · Answer

Thank you very much  Sasindran  for your generosity! Kudo for you!

septwibowo · Answer

Thank you  drexxie  ! I forgot this theorem, my bad!

chesstitans · Answer

well, this question is hardly a gmat question. The source is also unreliable. However, this question is really a tough question.

arunalo · Answer

This is real compact and accurate answer. Thanks mate. Kudo for you!

KarishmaB · Answer

The question is based on similar triangles though the biggest challenge here is to identify that they are similar. Once you do, the question is straight forward.

Say the triangles are ABO and DEO (say O is the point of intersection of the lines)
Angle BOA = Angle DOA (vertically opposite angles)
Angle ABD = Angle EDB (alternate angles on traversal cutting two parallel sides of the square)

The triangles are similar by AA.
All corresponding sides of a similar triangle are in the same ratio.

Bases AB and DE are in the ratio 4 : 1
Imagine altitudes from O on bases AB and DE. They will be in the ratio 4 : 1 too. But they will also add up to 4, the side of the square.
So altitude of ABO will be (4/5)*4

Area of triangle ABO = (1/2) * 4 * (4/5)*4 = 32/5

Area of square = 4 * 4 = 16

Area of ABO as % of area of square = (32/5)/16 * 100 = 40%

Gokul20 · Answer

I know this is something based on similar triangles concept, but instead of figuring out the actual values I tried to approximate and logically guess the answer.
Let the intersecting point of lines BD and AE be O.
Now we know that,
Area of square = 4 * 4 = 16
Area of triangle ABD = 16/2 = 8
Now, the shaded region is a portion of the triangle ABD. So the ratio should be less than 1/2.  Eliminate Option E
We are given that ED = 1. Considering Triangle ADO, the altitude should be a less than 1. So the are of triangle ADO = 1/2 * 4 * 1 = 2. In fact something less than 2.
So the are of shaded region is < 8 - 2 i.e., Area of shaded region < 6

So it should be between 8/16 and 6/16. i.e., between 50% and 37.5%.  So A, B and E are out.  Since the height is close to 1, we can safely choose Option C.

This is not a fool proof solution, but it will help to quickly work, take a logical guess and move on.

Gokul20 · Answer

I didn't know that altitudes are also similar in two similar triangles. New learning. Thanks Karishma
