Equilateral triangle BDF is inscribed in equilateral triangl [#permalink]
Show Tags
19 Jun 2010, 07:17
3
This post received KUDOS
13
This post was BOOKMARKED
Question Stats:
44% (01:37) correct 56% (01:49) wrong based on 339 sessions
HideShow timer Statistics
Attachment:
Captura.jpg [ 108.93 KiB  Viewed 12395 times ]
Equilateral triangle BDF is inscribed in equilateral triangle ACE, as shown in the figure above. The shaded region is what fraction of the area of the triangle ACE? (1) Angle DFE is 90º (2) The length of AF is 10*sqrt(3)
Official Answer and Stats are available only to registered users. Register/ Login.



Math Expert
Joined: 02 Sep 2009
Posts: 43810

Re: DS: Equilateral triangle inscribed in triangle [#permalink]
Show Tags
19 Jun 2010, 08:09
4
This post received KUDOS
Expert's post
7
This post was BOOKMARKED
Nusa84 wrote: Equilateral triangle BDF is inscribed in equilateral triangle ACE, as shown in the figure above. The shaded region is what fraction of the area of the triangle ACE? 1. Angle DFE is 90º 2. The length of AF is 10*sqrt(3) Can you help me with this one? Thanks!!! The problem is easier to solve than to explain, but anyway: In equilateral triangle all angles equal to 60 degrees and \(Area_{equilateral}=\frac{a^2\sqrt{3}}{4}\), where \(a\) is the length of a side. (1) Angle DFE is 90º > angles ABF and BDC must also be 90º (for example \(\angle {BDC}=180\angle {BDF}\angle{EDF}=1806030\) and the same for ABF). Also as \(\angle{DEF}=\angle{BCD}=\angle{BAF}=60\), then triangles DFE, BCD and BAF are 306090 trianlges. In such triangle sides are in the ratio: \(1:\sqrt{3}:2\) (smallest side (1) is opposite the smallest angle (30°), and the longest side (2) is opposite the largest angle (90°)). So if \(DE=2x\) (hypotenuse in right triangle DFE), then \(DC=x\) (smaller leg in right triangle BCD) and \(BD=\sqrt{3}x\) (larger leg in right triangle BCD, also the side of inscribed triangle). So the side of triangle ACE would be \(CE=DC+DE=x+2x=3x\) Area of the shaded region (right triangle BDC) would be \(Area_{BDC}=\frac{BD*DC}{2}=\frac{\sqrt{3}x*x}{2}=\frac{\sqrt{3}x^2}{2}\) and the area of equilateral triangle \(Area_{ACE}=\frac{a^2\sqrt{3}}{4}=\frac{(3x)^2*\sqrt{3}}{4}=\frac{9x^2\sqrt{3}}{4}\); \(\frac{Area_{BDC}}{Area_{ACE}}=\frac{\sqrt{3}x^2}{2}*\frac{4}{9x^2\sqrt{3}}=\frac{2}{9}\). Sufficient. (2) The length of AF is \(10*\sqrt{3}\). Multiple breakdowns are possible, hence multiple ratios of areas. Not sufficient. Answer: A.
_________________
New to the Math Forum? Please read this: Ultimate GMAT Quantitative Megathread  All You Need for Quant  PLEASE READ AND FOLLOW: 12 Rules for Posting!!! Resources: GMAT Math Book  Triangles  Polygons  Coordinate Geometry  Factorials  Circles  Number Theory  Remainders; 8. Overlapping Sets  PDF of Math Book; 10. Remainders  GMAT Prep Software Analysis  SEVEN SAMURAI OF 2012 (BEST DISCUSSIONS)  Tricky questions from previous years.
Collection of Questions: PS: 1. Tough and Tricky questions; 2. Hard questions; 3. Hard questions part 2; 4. Standard deviation; 5. Tough Problem Solving Questions With Solutions; 6. Probability and Combinations Questions With Solutions; 7 Tough and tricky exponents and roots questions; 8 12 Easy Pieces (or not?); 9 Bakers' Dozen; 10 Algebra set. ,11 Mixed Questions, 12 Fresh Meat DS: 1. DS tough questions; 2. DS tough questions part 2; 3. DS tough questions part 3; 4. DS Standard deviation; 5. Inequalities; 6. 700+ GMAT Data Sufficiency Questions With Explanations; 7 Tough and tricky exponents and roots questions; 8 The Discreet Charm of the DS; 9 Devil's Dozen!!!; 10 Number Properties set., 11 New DS set.
What are GMAT Club Tests? Extrahard Quant Tests with Brilliant Analytics



Intern
Joined: 30 May 2010
Posts: 29
Schools: YALE SOM

Re: DS: Equilateral triangle inscribed in triangle [#permalink]
Show Tags
19 Jun 2010, 08:27
Bunuel wrote: Nusa84 wrote: Equilateral triangle BDF is inscribed in equilateral triangle ACE, as shown in the figure above. The shaded region is what fraction of the area of the triangle ACE? 1. Angle DFE is 90º 2. The length of AF is 10*sqrt(3) Can you help me with this one? Thanks!!! Attachment: Captura.jpg The problem is easier to solve than to explain, but anyway: In equilateral triangle all angles equal to 60 degrees and \(Area_{equilateral}=\frac{a^2\sqrt{3}}{4}\), where \(a\) is the length of a side. (1) Angle DFE is 90º > angles ABF and BDC must also be 90º (for example \(\angle {BDC}=180\angle {BCD}\angle{EDF}=1806030\) and the same for ABF). Also as \(\angle{DEF}=\angle{BCD}=\angle{BAF}=60\), then triangles DFE, BCD and BAF are 306090 trianlges. In such triangle sides are in the ratio: \(1:\sqrt{3}:2\) (smallest side (1) is opposite the smallest angle (30°), and the longest side (2) is opposite the largest angle (90°)). So if \(DE=2x\) (hypotenuse in right triangle DFE), then \(DC=x\) (smaller leg in right triangle BCD) and \(BD=\sqrt{3}x\) (larger leg in right triangle BCD, also the side of inscribed triangle). So the side of triangle ACE would be \(CE=DC+DE=x+2x=3x\) Area of the shaded region (right triangle BDC) would be \(Area_{BDC}=\frac{BD*DC}{2}=\frac{\sqrt{3}x*x}{2}=\frac{\sqrt{3}x^2}{2}\) and the area of equilateral triangle \(Area_{ACE}=\frac{a^2\sqrt{3}}{4}=\frac{(3x)^2*\sqrt{3}}{4}=\frac{9x^2\sqrt{3}}{4}\); \(\frac{Area_{BDC}}{Area_{ACE}}=\frac{\sqrt{3}x^2}{2}*\frac{4}{9x^2\sqrt{3}}=\frac{2}{9}\). Sufficient. (2) The length of AF is \(10*\sqrt{3}\). Multiple breakdowns are possible, hence multiple ratios of areas. Not sufficient. Answer: A. As you said, easier to solve, many thanks!!!!!



Manager
Joined: 06 Mar 2010
Posts: 102

Re: DS: Equilateral triangle inscribed in triangle [#permalink]
Show Tags
27 Jun 2010, 14:19
Good solution in steps given.



Math Expert
Joined: 02 Sep 2009
Posts: 43810

Re: Equilateral triangle BDF is inscribed in equilateral triangl [#permalink]
Show Tags
06 Mar 2014, 01:37



Intern
Affiliations: CA, SAP FICO
Joined: 22 Nov 2012
Posts: 35
Location: India
Concentration: Finance, Sustainability
GMAT 1: 620 Q42 V33 GMAT 2: 720 Q47 V41
GPA: 3.2
WE: Corporate Finance (Energy and Utilities)

Re: DS: Equilateral triangle inscribed in triangle [#permalink]
Show Tags
06 Mar 2014, 18:12
Bunuel wrote: Nusa84 wrote: Equilateral triangle BDF is inscribed in equilateral triangle ACE, as shown in the figure above. The shaded region is what fraction of the area of the triangle ACE? 1. Angle DFE is 90º 2. The length of AF is 10*sqrt(3) Can you help me with this one? Thanks!!! Attachment: Captura.jpg The problem is easier to solve than to explain, but anyway: In equilateral triangle all angles equal to 60 degrees and \(Area_{equilateral}=\frac{a^2\sqrt{3}}{4}\), where \(a\) is the length of a side. (1) Angle DFE is 90º > angles ABF and BDC must also be 90º (for example \(\angle {BDC}=180\angle {BCD}\angle{EDF}=1806030\) and the same for ABF). Also as \(\angle{DEF}=\angle{BCD}=\angle{BAF}=60\), then triangles DFE, BCD and BAF are 306090 trianlges. In such triangle sides are in the ratio: \(1:\sqrt{3}:2\) (smallest side (1) is opposite the smallest angle (30°), and the longest side (2) is opposite the largest angle (90°)). So if \(DE=2x\) (hypotenuse in right triangle DFE), then \(DC=x\) (smaller leg in right triangle BCD) and \(BD=\sqrt{3}x\) (larger leg in right triangle BCD, also the side of inscribed triangle). So the side of triangle ACE would be \(CE=DC+DE=x+2x=3x\) Area of the shaded region (right triangle BDC) would be \(Area_{BDC}=\frac{BD*DC}{2}=\frac{\sqrt{3}x*x}{2}=\frac{\sqrt{3}x^2}{2}\) and the area of equilateral triangle \(Area_{ACE}=\frac{a^2\sqrt{3}}{4}=\frac{(3x)^2*\sqrt{3}}{4}=\frac{9x^2\sqrt{3}}{4}\); \(\frac{Area_{BDC}}{Area_{ACE}}=\frac{\sqrt{3}x^2}{2}*\frac{4}{9x^2\sqrt{3}}=\frac{2}{9}\). Sufficient. (2) The length of AF is \(10*\sqrt{3}\). Multiple breakdowns are possible, hence multiple ratios of areas. Not sufficient. Answer: A. \(\angle {BDC}=180\angle {BCD}\angle{EDF}=1806030\)  Could you explain the logic for taking EDF?



Veritas Prep GMAT Instructor
Joined: 16 Oct 2010
Posts: 7938
Location: Pune, India

Re: Equilateral triangle BDF is inscribed in equilateral triangl [#permalink]
Show Tags
06 Mar 2014, 22:55
1
This post received KUDOS
Expert's post
1
This post was BOOKMARKED

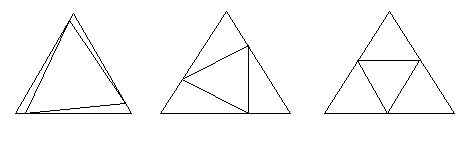

Nusa84 wrote: Attachment: The attachment Captura.jpg is no longer available Equilateral triangle BDF is inscribed in equilateral triangle ACE, as shown in the figure above. The shaded region is what fraction of the area of the triangle ACE? (1) Angle DFE is 90º (2) The length of AF is 10*sqrt(3) Note that in a given equilateral triangle, you can inscribe many other equilateral triangles. The areas of these inscribed triangles will be different hence the leftover areas will be different. Attachment:
Ques3.jpg [ 13.11 KiB  Viewed 8257 times ]

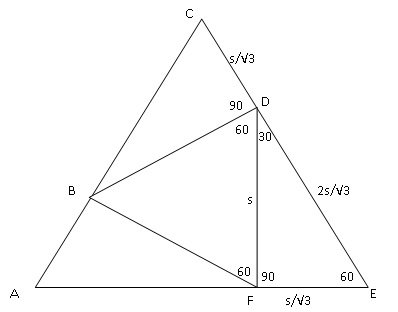

So depending on what type of triangle is inscribed, the shaded region will be a fraction of the area of triangle ACE. (1) Angle DFE is 90º All internal angles of Equilateral triangles are 60. Angle DFE is 90 so triangle DFE is a right triangle with angles 306090 and sides in the ratio 1:√3:2. Attachment:
Ques4.jpg [ 15.69 KiB  Viewed 8252 times ]
If we assume that side of inscribed triangle is s, we get the side of the large triangle in terms of s too. We also get the area of the right triangle (shaded region) in terms of s. Hence we can easily get the area of the shaded region as a fraction of area of triangle ACE (since they will both be in terms of s^2). This statement alone will be sufficient. (2) The length of AF is 10*sqrt(3) Look at the three triangles shown above again. AF could be 10√3 in any of the three cases. The area of shaded region as a fraction of the area of ACE will be different in each case. Hence this statement alone is not sufficient to answer the question. Answer (A)
_________________
Karishma Veritas Prep  GMAT Instructor My Blog
Get started with Veritas Prep GMAT On Demand for $199
Veritas Prep Reviews



Manager
Joined: 01 May 2013
Posts: 61

Re: Equilateral triangle BDF is inscribed in equilateral triangl [#permalink]
Show Tags
06 Mar 2014, 23:05
Since you asked for further discussion, here goes.
I more intuited the answer than solved. I know that each interior angle of both equilateral triangles is 60. If I am told that DFE = 90, I can figure out that the other 3 triangles are 306090 and congruent (Each 60degree angle is across from one side of the smaller equilateral triangle; thus all corresponding sides for the right triangles are the same "x(sqrt3)"). Because I know the relative dimensions of triangles BCD, ABF, DFE, and BDF, I can figure out the relative areas of the triangles. For example, I know I can make BD sqrt3, BC 2, and CD 1. I can figure out the areas of all 4 smaller triangles, add these areas to get ACE's area, and thus determine the fraction of ACE that BCD represents. I didn't actually bother to assign values or do the calculations because it was clear Statement 1 is sufficient.
Eliminate B, C, and E.
Statement 2 only tells me AF. It doesn't provide me with any information about any other sides or angles in the figure. Thus, I would not be able to solve for area. The information is useless. Insufficient.
Eliminate D. The answer is A.



Math Expert
Joined: 02 Sep 2009
Posts: 43810

Re: DS: Equilateral triangle inscribed in triangle [#permalink]
Show Tags
07 Mar 2014, 00:34
X017in wrote: Bunuel wrote: Nusa84 wrote: Equilateral triangle BDF is inscribed in equilateral triangle ACE, as shown in the figure above. The shaded region is what fraction of the area of the triangle ACE? 1. Angle DFE is 90º 2. The length of AF is 10*sqrt(3) Can you help me with this one? Thanks!!! Attachment: Captura.jpg The problem is easier to solve than to explain, but anyway: In equilateral triangle all angles equal to 60 degrees and \(Area_{equilateral}=\frac{a^2\sqrt{3}}{4}\), where \(a\) is the length of a side. (1) Angle DFE is 90º > angles ABF and BDC must also be 90º (for example \(\angle {BDC}=180\angle {BCD}\angle{EDF}=1806030\) and the same for ABF). Also as \(\angle{DEF}=\angle{BCD}=\angle{BAF}=60\), then triangles DFE, BCD and BAF are 306090 trianlges. In such triangle sides are in the ratio: \(1:\sqrt{3}:2\) (smallest side (1) is opposite the smallest angle (30°), and the longest side (2) is opposite the largest angle (90°)). So if \(DE=2x\) (hypotenuse in right triangle DFE), then \(DC=x\) (smaller leg in right triangle BCD) and \(BD=\sqrt{3}x\) (larger leg in right triangle BCD, also the side of inscribed triangle). So the side of triangle ACE would be \(CE=DC+DE=x+2x=3x\) Area of the shaded region (right triangle BDC) would be \(Area_{BDC}=\frac{BD*DC}{2}=\frac{\sqrt{3}x*x}{2}=\frac{\sqrt{3}x^2}{2}\) and the area of equilateral triangle \(Area_{ACE}=\frac{a^2\sqrt{3}}{4}=\frac{(3x)^2*\sqrt{3}}{4}=\frac{9x^2\sqrt{3}}{4}\); \(\frac{Area_{BDC}}{Area_{ACE}}=\frac{\sqrt{3}x^2}{2}*\frac{4}{9x^2\sqrt{3}}=\frac{2}{9}\). Sufficient. (2) The length of AF is \(10*\sqrt{3}\). Multiple breakdowns are possible, hence multiple ratios of areas. Not sufficient. Answer: A. \(\angle {BDC}=180\angle {BCD}\angle{EDF}=1806030\)  Could you explain the logic for taking EDF? It should be \(\angle {BDC}=180\angle {BDF}\angle{EDF}=1806030\) (those 3 angles make up a straight line, which is 180 degrees). Hope it's clear.
_________________
New to the Math Forum? Please read this: Ultimate GMAT Quantitative Megathread  All You Need for Quant  PLEASE READ AND FOLLOW: 12 Rules for Posting!!! Resources: GMAT Math Book  Triangles  Polygons  Coordinate Geometry  Factorials  Circles  Number Theory  Remainders; 8. Overlapping Sets  PDF of Math Book; 10. Remainders  GMAT Prep Software Analysis  SEVEN SAMURAI OF 2012 (BEST DISCUSSIONS)  Tricky questions from previous years.
Collection of Questions: PS: 1. Tough and Tricky questions; 2. Hard questions; 3. Hard questions part 2; 4. Standard deviation; 5. Tough Problem Solving Questions With Solutions; 6. Probability and Combinations Questions With Solutions; 7 Tough and tricky exponents and roots questions; 8 12 Easy Pieces (or not?); 9 Bakers' Dozen; 10 Algebra set. ,11 Mixed Questions, 12 Fresh Meat DS: 1. DS tough questions; 2. DS tough questions part 2; 3. DS tough questions part 3; 4. DS Standard deviation; 5. Inequalities; 6. 700+ GMAT Data Sufficiency Questions With Explanations; 7 Tough and tricky exponents and roots questions; 8 The Discreet Charm of the DS; 9 Devil's Dozen!!!; 10 Number Properties set., 11 New DS set.
What are GMAT Club Tests? Extrahard Quant Tests with Brilliant Analytics



Intern
Joined: 08 Jan 2015
Posts: 28

Equilateral triangle BDF is inscribed in a equilateral triangle ACE, [#permalink]
Show Tags
04 Apr 2015, 08:29
Equilateral triangle BDF is inscribed in a equilateral triangle ACE, as shown in the figure above. The shaded region is what fraction of the area of triangle ACE? 1) Angle DFE = 90º 2) The length of AF is 10\sqrt{3}
Attachments
quant_ds_00000225.jpg [ 19.57 KiB  Viewed 6541 times ]



Retired Moderator
Joined: 06 Jul 2014
Posts: 1269
Location: Ukraine
Concentration: Entrepreneurship, Technology
GMAT 1: 660 Q48 V33 GMAT 2: 740 Q50 V40

Re: Equilateral triangle BDF is inscribed in a equilateral triangle ACE, [#permalink]
Show Tags
04 Apr 2015, 09:16
Awli wrote: Equilateral triangle BDF is inscribed in a equilateral triangle ACE, as shown in the figure above. The shaded region is what fraction of the area of triangle ACE?
1) Angle DFE = 90º
2) The length of AF is 10\sqrt{3} This is duplicate of this task equilateraltrianglebdfisinscribedinequilateraltriangl96109.html?fl=similarOnly difference that I find in second statement: 10*sqrt(3) in original task and 10\sqrt{3} in this task But this difference change nothing. 1) If we know that DFE is right triangle 30:60:90, so we know ratio of its sides, can find side of big triangle (relative to DFE), calculate their areas and find fraction 2) This statement doesn't give us enough information. Answer is A
_________________
Simple way to always control time during the quant part. How to solve main idea questions without full understanding of RC. 660 (Q48, V33)  unpleasant surprise 740 (Q50, V40, IR3)  antidebrief



Math Expert
Joined: 02 Sep 2009
Posts: 43810

Re: Equilateral triangle BDF is inscribed in equilateral triangl [#permalink]
Show Tags
05 Apr 2015, 04:01



NonHuman User
Joined: 09 Sep 2013
Posts: 13828

Re: Equilateral triangle BDF is inscribed in equilateral triangl [#permalink]
Show Tags
17 Apr 2016, 05:59
Hello from the GMAT Club BumpBot! Thanks to another GMAT Club member, I have just discovered this valuable topic, yet it had no discussion for over a year. I am now bumping it up  doing my job. I think you may find it valuable (esp those replies with Kudos). Want to see all other topics I dig out? Follow me (click follow button on profile). You will receive a summary of all topics I bump in your profile area as well as via email.
