705-805 Level|   Geometry|
User avatar
Bunuel
User avatar
Math Expert
Joined: 02 Sep 2009
Last visit: 19 Nov 2025
Posts: 105,379
Own Kudos:
778,173
 [13]
Given Kudos: 99,977
Products:
GMAT Club Tests Forum Quiz
Expert
Expert reply
Active GMAT Club Expert! Tag them with @ followed by their username for a faster response.
Posts: 105,379
Kudos: 778,173
 [13]
If the shaded region in the diagram above is a square, then what fract 15 Jun 2020, 05:33
1
Kudos
Add Kudos
12
Bookmarks
Bookmark this Post
00:00
Start Timer
Pause Timer
Resume Timer
Show Answer
Hide
Show
History
B
Be sure to select an answer first to save it in the Error Log before revealing the correct answer (OA)!

Difficulty:

95% (hard)

Question Stats:

48% (03:07) correct 52% (02:36) wrong based on 62 sessions

History

Date
Time
Result
Not Attempted Yet

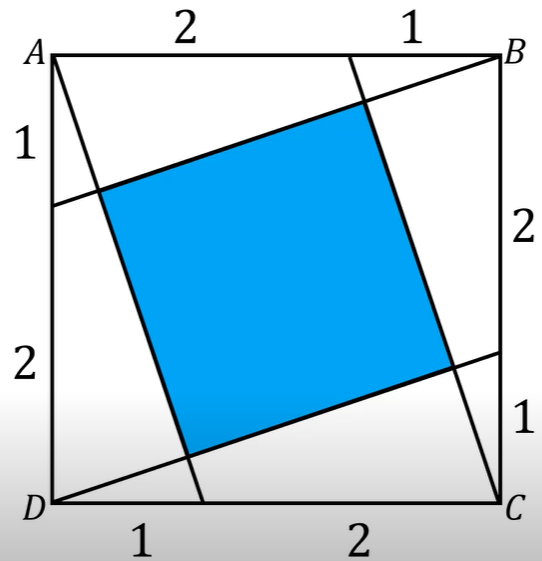

If the shaded region in the diagram above is a square, then what fraction of square ABCD is shaded?

A. 1/2
B. 2/5
C. 1/3
D. 1/4
E. 1/5


Show Spoiler
Attachment:
2020-06-15_1626.png [ 68.81 KiB | Viewed 6487 times ]
ShowHide Answer
Official Answer
B
User avatar
RaghavKhanna
User avatar
Joined: 03 May 2020
Last visit: 23 Aug 2025
Posts: 265
Own Kudos:
307
Given Kudos: 675
Location: India
Concentration: Marketing, Strategy
GMAT 1: 700 Q47 V39
GMAT 1: 700 Q47 V39
Posts: 265
Kudos: 307
If the shaded region in the diagram above is a square, then what fract Updated on: 15 Jun 2020, 06:11
Originally posted by RaghavKhanna on 15 Jun 2020, 05:44.
Last edited by RaghavKhanna on 15 Jun 2020, 06:11, edited 1 time in total.
Kudos
Add Kudos
Bookmarks
Bookmark this Post
Let the side of bigger square be 3 units.

The 4 bigger triangles formed will be similar, and the 4 smaller triangles will also be similar.

Hypotenuse of bigger triangle = root(10) units


Area of shaded region = Area of square - 4(Area of bigger triangles) + 4(Area of smaller triangles) = 9 - 4*0.5*3*1 + 4*0.5*3*0.25 = 4.5 units

=> Fraction of shaded region = 4.5/9 = 1/2

=> Answer: A
User avatar
sood1596
User avatar
Joined: 15 Apr 2020
Last visit: 17 Jul 2024
Posts: 210
Own Kudos:
173
Given Kudos: 96
Location: United Arab Emirates
Concentration: General Management, Strategy
WE:Analyst (Consulting)
Products:
My Reviews
Posts: 210
Kudos: 173
If the shaded region in the diagram above is a square, then what fract 15 Jun 2020, 05:55
Kudos
Add Kudos
Bookmarks
Bookmark this Post
Won’t there be an overlap of the area of triangles?

Posted from my mobile device
User avatar
GMATinsight
User avatar
Major Poster
Joined: 08 Jul 2010
Last visit: 18 Nov 2025
Posts: 6,836
Own Kudos:
16,351
 [3]
Given Kudos: 128
Status:GMAT/GRE Tutor l Admission Consultant l On-Demand Course creator
Location: India
GMAT: QUANT+DI EXPERT
Schools: IIM (A) ISB '24
GMAT 1: 750 Q51 V41
WE:Education (Education)
Products:
My Reviews
Expert
Expert reply
Schools: IIM (A) ISB '24
GMAT 1: 750 Q51 V41
Posts: 6,836
Kudos: 16,351
 [3]
If the shaded region in the diagram above is a square, then what fract Updated on: 21 Oct 2020, 21:26
Originally posted by GMATinsight on 15 Jun 2020, 05:58.
Last edited by GMATinsight on 21 Oct 2020, 21:26, edited 2 times in total.
3
Kudos
Add Kudos
Bookmarks
Bookmark this Post
Bunuel

If the shaded region in the diagram above is a square, then what fraction of square ABCD is shaded?

A. 1/2
B. 2/5
C. 1/3
D. 1/4
E. 1/5


Show Spoiler
Attachment:
Show more

Please find the video solution as attached here.



Answer: Option B
User avatar
IanStewart
User avatar
GMAT Tutor
Joined: 24 Jun 2008
Last visit: 18 Nov 2025
Posts: 4,145
Own Kudos:
10,986
 [4]
Given Kudos: 99
Expert
Expert reply
Posts: 4,145
Kudos: 10,986
 [4]
If the shaded region in the diagram above is a square, then what fract 15 Jun 2020, 06:55
2
Kudos
Add Kudos
2
Bookmarks
Bookmark this Post
GMATinsight


Answer: Option A

Please refer the image and Video attached for solution
Show more

That solution is not correct. The method is fine -- the smallest triangles in the picture are similar to the largest ones, so their legs are in a 1 to 3 ratio -- but in the smallest right triangle, with sides x, 3x and 1, you seem to have concluded that x = 1/2. That would make 3x longer than the hypotenuse, so that is clearly wrong. To fix the solution, you need to square 3x correctly:

x^2 + (3x)^2 = 1
x^2 + 9x^2 = 1
x^2 = 1/10
x = √10/10

Then by noticing that the long diagonal lines of length √10 are made up of two lengths x and 3x, along with a side of the square, we find the side of the square is √10 - 4x = √10 - 4(√10/10) = √10 (1 - 2/5) = (3/5)√10, and the area of the square is the square of this, (9/25)(10) = 18/5. To find what fraction this represents of the big square of area 9, we divide this by 9 to get 2/5, so the answer is B.

Another way to do the problem: look at the triangle you get by connecting points A, B and the point on the square closest to A, which I'll call P. That's a right triangle (because we have a 90 degree angle in the square, all of the angles around the square's vertices are 90 degrees) with a hypotenuse of 3. Notice that inside the big square, we have the blue square, and four triangles identical to ABP. So if we could find the area of ABP, we could find the area of the blue square.

Inside triangle ABP, we have a smaller right triangle, on the right of the diagram, with hypotenuse 1. This triangle has the same angles as ABP, so is similar to ABP, but it's hypotenuse is 1/3 as long. If two shapes are similar, and the lengths in one are 1/3 the lengths in the other, the area of the smaller shape will be (1/3)^2 = 1/9 as big. So if the area of the small triangle is x, the area of ABP is 9x. If you now look at the slightly larger right triangle containing AB and the top portion of AD (the part of length 1), that is made up of ABP and another of the small triangles. So its area is 10x. But we know its dimensions; its area is also 3/2. So 10x = 3/2, and x = 3/20. Since the area of ABP is 9x, the area of ABP is 27/20, and the area of four copies of triangle ABP is 27/5. Subtracting that from 9, the area of the big square, we find the area of the blue square is 18/5. We need to divide that by 9 to answer the question, so the answer is 2/5.
User avatar
firas92
User avatar
Current Student
Joined: 16 Jan 2019
Last visit: 02 Dec 2024
Posts: 616
Own Kudos:
1,725
Given Kudos: 142
Location: India
Concentration: General Management
Schools: Tepper '23 (M$) Foster '23 (D)
GMAT 1: 740 Q50 V40
WE:Sales (Other)
Products:
My Reviews
Schools: Tepper '23 (M$) Foster '23 (D)
GMAT 1: 740 Q50 V40
Posts: 616
Kudos: 1,725
If the shaded region in the diagram above is a square, then what fract 15 Jun 2020, 07:12
Kudos
Add Kudos
Bookmarks
Bookmark this Post
Bunuel

If the shaded region in the diagram above is a square, then what fraction of square ABCD is shaded?

A. 1/2
B. 2/5
C. 1/3
D. 1/4
E. 1/5


Show Spoiler
Attachment:
The attachment 2020-06-15_1626.png is no longer available
Show more

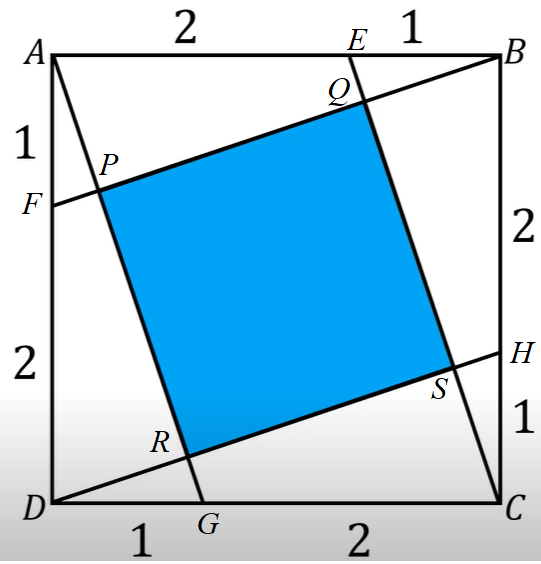

From right triangle ADG,

\(AG^2=AD^2+DG^2=9+1\)

\(AG=\sqrt{10}\)

Property: In a right triangle, when a perpendicular is drawn from the vertex with the right angle to the hypotenuse, the right triangle is divided into two similar right triangles each of which is similar to the original right triangle

In triangle ADG, DR is perpendicular to the hypotenuse AG

So triangles ADG & DRG are similar

\(\frac{AG}{DG} = \frac{AD}{DR}\)

\(\frac{\sqrt{10}}{1} = \frac{3}{DR}\)

\(DR=\frac{3}{\sqrt{10}}\)

Similarly, \(\frac{AG}{DG}=\frac{DG}{GR}\)

\(\frac{\sqrt{10}}{1}=\frac{1}{GR}\)

\(GR=\frac{1}{\sqrt{10}}\)

We have \(PR=AG-AP-GR\)

By symmetry, \(AP=DR\)

So, \(PR=AG-DR-GR=\sqrt{10}-\frac{3}{\sqrt{10}}-\frac{1}{\sqrt{10}}\)

\(PR=\frac{6}{\sqrt{10}}\)

So the ratio of area of PQRS to area of ABCD \(= \frac{(\frac{6}{\sqrt{10}})^2}{3^2}\) \(= \frac{\frac{36}{10}}{9}\) \(= \frac{2}{5}\)

Answer is (B)
Attachments

Untitled.png [ 62.62 KiB | Viewed 5356 times ]

User avatar
samarpan.g28
User avatar
Joined: 08 Dec 2023
Last visit: 19 Nov 2025
Posts: 324
Own Kudos:
125
Given Kudos: 1,236
Location: India
Concentration: General Management, Human Resources
Schools: IIMA '26 Schulich Sept '26 Montreal '26 HEC Sept '26
GPA: 8.88
WE:Engineering (Technology)
Schools: IIMA '26 Schulich Sept '26 Montreal '26 HEC Sept '26
Posts: 324
Kudos: 125
If the shaded region in the diagram above is a square, then what fract 04 Apr 2024, 21:45
Kudos
Add Kudos
Bookmarks
Bookmark this Post
 Bunuel

If the shaded region in the diagram above is a square, then what fraction of square ABCD is shaded?

A. 1/2
B. 2/5
C. 1/3
D. 1/4
E. 1/5


Show Spoiler
Attachment:
The attachment 2020-06-15_1626.png is no longer available
Show more

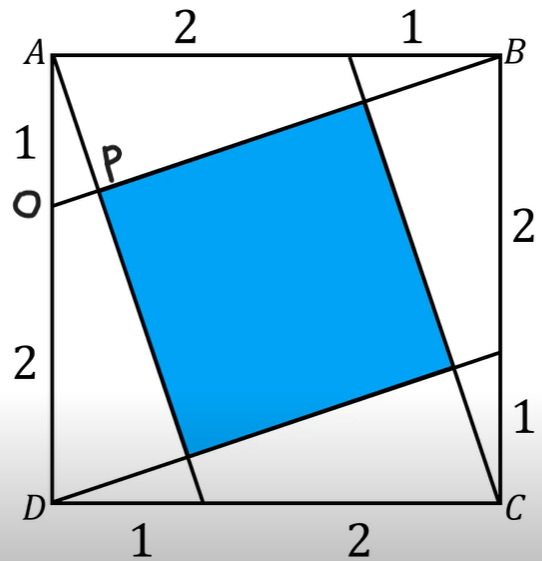

Please refer to the image.

So there are 4 right angle triangles. Let me take AOB. The area of it is 1/2*3*1=3/2 sq. units. BO is the hypotenuse \sqrt{ \(3^2\)+\(1^2\) }= \sqrt{10}.

We can see AP is the height of the triangle AOB so 3/2=1/2 * AP * \sqrt{10} or, AP=3/ \sqrt{10} .

Now take the right angle triangle AOP, we know AO and AP. So, OP= \sqrt{ \(1^2\)-\((3/ [square_root]10} )^2\) [/square_root] or, OP=1/ \sqrt{10}.

Therefore, each side of the shaded square is \sqrt{10}-3/\sqrt{10}-1/\sqrt{10}=6/ \sqrt{10}

The area of the shaded square becomes 36/10=3.6. The area of the larger square is 3*3=9.

3.6/9=2/5. Option (E) is correct.­
Attachments

2020-06-15_1626.png [ 70.85 KiB | Viewed 1051 times ]
