There are two circles with centers A and B having radii 5 cm and 3 cm.

  new topic post reply Question banks Downloads My Bookmarks Reviews Important topics
Author Message
TAGS:

Hide Tags

Find Similar Topics
Retired Moderator
User avatar
V
Joined: 27 Oct 2017
Posts: 1842
WE: General Management (Education)
GMAT ToolKit User CAT Tests
There are two circles with centers A and B having radii 5 cm and 3 cm.  [#permalink]

Show Tags

New post 06 Jun 2020, 18:04
00:00
A
B
C
D
E

Difficulty:

  55% (hard)

Question Stats:

73% (01:50) correct 27% (02:15) wrong based on 26 sessions

HideShow timer Statistics

GMATBusters’ Quant Quiz Question -3

For past quiz questions, click here



There are two circles with centers A and B having radii 5 cm and 3 cm. They touch each other internally. If the perpendicular bisector of segment AB meets the bigger circle at P and Q. Find the length of PQ.

A. 2√3
B. 3√4
C. 4√6
D. 5√6
E. 5√7

_________________
Director
Director
avatar
V
Joined: 22 Feb 2018
Posts: 780
GMAT ToolKit User
Re: There are two circles with centers A and B having radii 5 cm and 3 cm.  [#permalink]

Show Tags

New post Updated on: 07 Jun 2020, 03:47
If, as per figure, PDA is right angle triangle, then
PD^2 + DA^2 = AP^2
PD^2 =25-1=24
PD= 2root6.
PQ = 2*PD = 4root6

Imo. C
Attachments

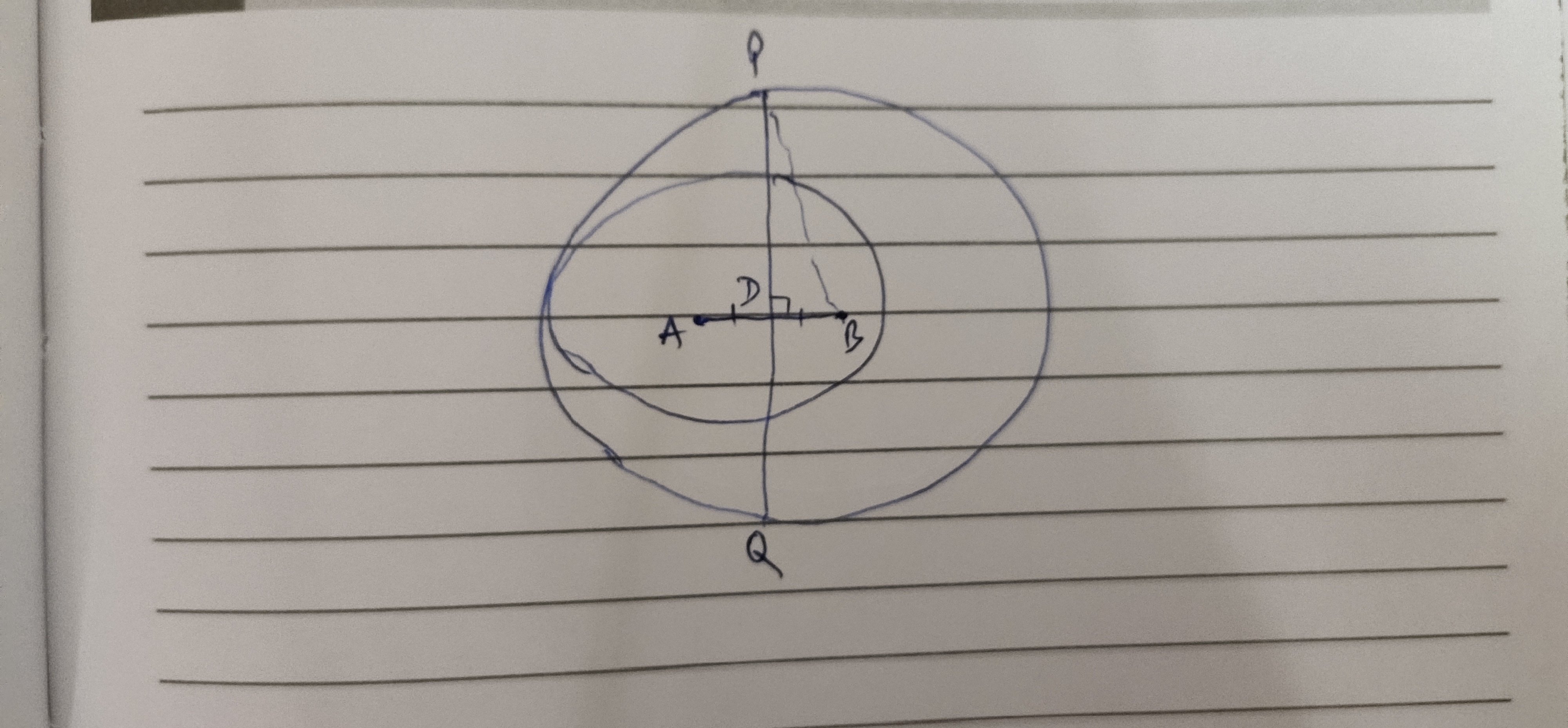

Image1.jpg [ 1.9 MiB | Viewed 238 times ]


Originally posted by Raxit85 on 06 Jun 2020, 18:20.
Last edited by Raxit85 on 07 Jun 2020, 03:47, edited 2 times in total.
Manager
Manager
avatar
B
Joined: 11 Jun 2014
Posts: 80
Re: There are two circles with centers A and B having radii 5 cm and 3 cm.  [#permalink]

Show Tags

New post 06 Jun 2020, 18:33
ANSWER:C
LET BOTH CIRCLE TOUCH INTERNALLY AT POINT T .
And let R be the point at which PQ bisect AB
AB=AT-BT-5-3=2
AR=2/1=1
Length of PQ=2PR=2X sqrt PA^2 - AR^2
PQ=2 X Sqrt 25-1=2 sqrt 24=4 sqrt 6
=2 X Sqrt
INSEAD School Moderator
avatar
S
Joined: 19 Sep 2018
Posts: 86
CAT Tests
Re: There are two circles with centers A and B having radii 5 cm and 3 cm.  [#permalink]

Show Tags

New post 06 Jun 2020, 19:01
Let O be the point on AB that bisects AB. AP and AQ would be the radius of the larger circle which is 5.
AB is the difference between the radius of the larger circle and the smaller circle which is 5-3= 2
Thus we have two right triangles with hypotenuse as 5 and one leg as 1.
Thus OP^2= OQ^2= 5^2- 1^2
OP= OQ= square root of 24
Thus, PQ= 2* square root of 24
PQ= 4√6

Answer: C
GMAT Club Legend
GMAT Club Legend
User avatar
V
Joined: 18 Aug 2017
Posts: 6430
Location: India
Concentration: Sustainability, Marketing
GPA: 4
WE: Marketing (Energy and Utilities)
GMAT ToolKit User Reviews Badge CAT Tests
Re: There are two circles with centers A and B having radii 5 cm and 3 cm.  [#permalink]

Show Tags

New post 06 Jun 2020, 20:18
given are two circles with centers A and B having radii 5 cm and 3 cm touching internally
The perpendicular bisector of segment AB meets the bigger circle at P and Q. Target Find the length of PQ.
Let the point of touch of two circles be C ; so AC = 5cm and BC = 3cm
also a LINE PQ which for circle center A pass through the line AC and intersect it at point D
we get AC-BC = AB ; 5-3 ; 2 cm
and PQ is perpendicular bisector so AD = 1 cm
now for ∆ PAD ; PA = 5cm and AD = 1 cm we can determine PD ; i.e 25-1 ; 24 ; 2√6
and since PQ is a chord of circle so its distance will be 2 *PD ; 2*2√6 ; 4√6
OPTION C


There are two circles with centers A and B having radii 5 cm and 3 cm. They touch each other internally. If the perpendicular bisector of segment AB meets the bigger circle at P and Q. Find the length of PQ.

A. 2√3
B. 3√4
C. 4√6
D. 5√6
E. 5√7
Intern
Intern
User avatar
B
Joined: 04 May 2020
Posts: 23
Location: Canada
Concentration: Finance, General Management
GPA: 3.42
Re: There are two circles with centers A and B having radii 5 cm and 3 cm.  [#permalink]

Show Tags

New post 06 Jun 2020, 20:59
There are two circles with centers A and B having radii 5 cm and 3 cm. They touch each other internally. If the perpendicular bisector of segment AB meets the bigger circle at P and Q. Find the length of PQ.

A. 2√3
B. 3√4
C. 4√6
D. 5√6
E. 5√7

Solution:

Attachment:

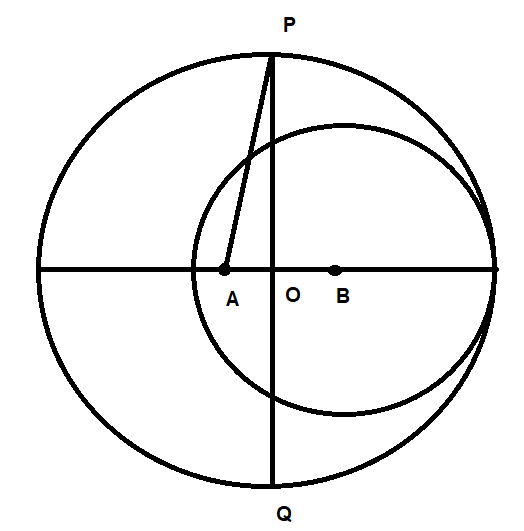

Picture2.png [ 8.23 KiB | Viewed 313 times ]


OAP is a right-angled triangle, in which, OA = 1 and AP = 5,

Therefore, \(OP^2 = AP^2 - AO^2 = 25 - 1 ; OP = \sqrt{24} = 2\sqrt{6}\)
PQ = 2 OP = \(4\sqrt{6}\)

So, C is the correct answer
Senior Manager
Senior Manager
avatar
P
Joined: 24 Oct 2015
Posts: 496
Location: India
Schools: Sloan '22, ISB, IIM
GMAT 1: 650 Q48 V31
GPA: 4
Premium Member CAT Tests
Re: There are two circles with centers A and B having radii 5 cm and 3 cm.  [#permalink]

Show Tags

New post 06 Jun 2020, 21:15
Quote:
There are two circles with centers A and B having radii 5 cm and 3 cm. They touch each other internally. If the perpendicular bisector of segment AB meets the bigger circle at P and Q. Find the length of PQ.

A. 2√3
B. 3√4
C. 4√6
D. 5√6
E. 5√7


length of AB = 2cm

perpendicular bisector of AB divides AB in two equal parts at point O.
in one of triangles formed by perpendicular bisector,
AP^2 = AO^2 + OP^2
OP^2 = 25 - 1 = 24; OP = 2√6

similarly, in other triangle, OQ also = 2√6

PQ = OP + OQ = 4√6
Ans: C
PS Forum Moderator
User avatar
G
Joined: 18 Jan 2020
Posts: 1078
Location: India
GPA: 4
CAT Tests
Re: There are two circles with centers A and B having radii 5 cm and 3 cm.  [#permalink]

Show Tags

New post 06 Jun 2020, 21:23
Let line segment AB and PQ cut each other at M
Let AM = X, BM = Y, PM = QM = Z
In triangle APM,
AP^2 = AM^2+PM^2
5^2 = X^2+Z^2
25-X^2 = Z^2 -------(1)

BP^2 = BM^2+PM^2
3^2 = Y^2+Z^2
9-Y^2 = Z^2 -------(2)

25-X^2 = 9-Y^2
16 = X^2-Y^2 --------(3)

A. 2√3 = 2Z => Z = √3
Putting value of Z in equation 1&2 respectively
25-3 = 22 = X^2 &
9-3 = 6 = Y^2.
Again putting value of X^2 & Y^2 in equation 3
22-6 = 16 => 16 = 16 (matching)

B. 3√4 = 2Z => Z = 3
Putting value of Z in equation 1&2 respectively
25-9 = 16 = X^2 &
9-9 = 0 = (zero value, which cannot be null)

C. 4√6 = 2Z => Z = 2√6
Putting value of Z in equation 1&2 respectively
25-12 = 13 = X^2 &
9-12 = (negative value, which cannot be negative)

D. 5√6 = 2Z => Z = 5√6/2
Putting value of Z in equation 1&2 respectively
25-75 = (negative value, which cannot be negative)

E. 5√7 = 2Z => Z = 5√7/2
Putting value of Z in equation 1&2 respectively
25-87.5 = (negative value, which cannot be negative)

IMO A

Posted from my mobile device
Intern
Intern
avatar
B
Joined: 18 Apr 2015
Posts: 8
Re: There are two circles with centers A and B having radii 5 cm and 3 cm.  [#permalink]

Show Tags

New post 06 Jun 2020, 21:56
OA is 4root6 . again pythagoras theorem is to be used
CEO
CEO
User avatar
V
Joined: 03 Jun 2019
Posts: 3184
Location: India
GMAT 1: 690 Q50 V34
WE: Engineering (Transportation)
Premium Member Reviews Badge CAT Tests
Re: There are two circles with centers A and B having radii 5 cm and 3 cm.  [#permalink]

Show Tags

New post Updated on: 06 Jun 2020, 23:41
Given:
1. There are two circles with centers A and B having radii 5 cm and 3 cm.
2. They touch each other internally.
3. The perpendicular bisector of segment AB meets the bigger circle at P and Q.

Asked: Find the length of PQ.

Attachment:

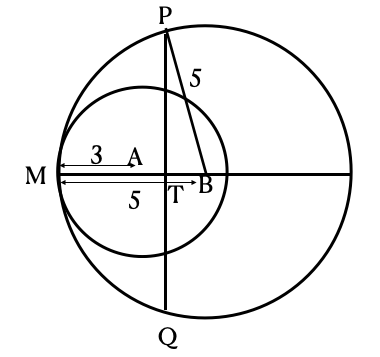

Screenshot 2020-06-07 at 1.06.04 PM.png
Screenshot 2020-06-07 at 1.06.04 PM.png [ 30.75 KiB | Viewed 265 times ]


AB = 5 - 3 = 2
\(AT = TB = \frac{AB}{2} = 1\)

\(In \triangle PTB\)

\(\angle PTB = 90^0\)
TB = 1
PB = radius of bigger circle = 5
\(PT = \sqrt{PB^2 - TB^2} = \sqrt{5^2 - 1^2} = \sqrt{24} = 2\sqrt{6}\)

\(PQ = PT*2 = 4\sqrt{6}\)

IMO C
_________________
Kinshook Chaturvedi
Email: kinshook.chaturvedi@gmail.com

Originally posted by Kinshook on 06 Jun 2020, 23:40.
Last edited by Kinshook on 06 Jun 2020, 23:41, edited 1 time in total.
Stern School Moderator
User avatar
S
Joined: 26 May 2020
Posts: 269
Concentration: General Management, Technology
WE: Analyst (Computer Software)
CAT Tests
Re: There are two circles with centers A and B having radii 5 cm and 3 cm.  [#permalink]

Show Tags

New post 06 Jun 2020, 23:41
Quote:
There are two circles with centers A and B having radii 5 cm and 3 cm. They touch each other internally. If the perpendicular bisector of segment AB meets the bigger circle at P and Q. Find the length of PQ.

A. 2√3
B. 3√4
C. 4√6
D. 5√6
E. 5√7

c,IMO

AB = 2 . So PQ/2 = root (24). so PQ = 2 root(24) = 2 * 2 (root (6)) = 4 root(6).
So c .

Posted from Mobile device
_________________
Thank you.
Regards,
Ashish A Das.

The more realistic you are during your practice, the more confident you will be during the CAT.
Manager
Manager
avatar
S
Joined: 31 May 2020
Posts: 144
GMAT ToolKit User CAT Tests
Re: There are two circles with centers A and B having radii 5 cm and 3 cm.  [#permalink]

Show Tags

New post 07 Jun 2020, 00:35
Let the meeting point of two circles be Y.

AY=AB+BY..........(AY=Radii of the bigger circle 5 cm. BY=Radii of the smaller circle 3cm)
\(\therefore AB = 5-3 = 2cm.\)

A perpendicular bisector of segment AB will divide AB & itself into two equal parts...(AX=XB, PX=XQ) Let the perpendicular bisector meet AB at X.
\(\therefore AX=XB=1cm\)

In \\(triangle APX\), AP = Radii of bigger circle 5cm, AX=1cm.
By Pythagoras theorem, \(PX=2\sqrt 6\)

PQ = PX+XQ
PQ = 2PX

\(PQ= 4 \sqrt 6\)
Thus, PQ is (C) \(4 \sqrt6\)

Attachments

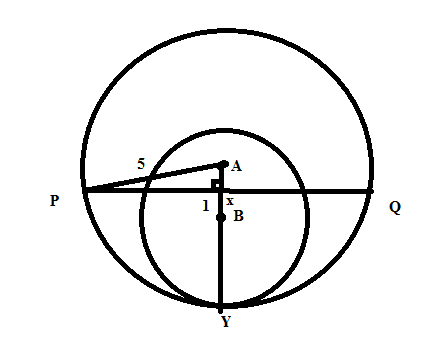

dIAGRAM.png [ 5.12 KiB | Viewed 289 times ]
