Square PQRS is inscribed in the square ABCD whose

 new topic post reply Question banks Downloads My Bookmarks Reviews Important topics
Author Message
TAGS:

Hide Tags

SVP
Status: The Best Or Nothing
Joined: 27 Dec 2012
Posts: 1787
Location: India
Concentration: General Management, Technology
WE: Information Technology (Computer Software)
Square PQRS is inscribed in the square ABCD whose  [#permalink]

Show Tags

Updated on: 30 Jul 2014, 18:43
2
7
00:00

Difficulty:

55% (hard)

Question Stats:

68% (02:19) correct 32% (02:53) wrong based on 155 sessions

HideShow timer Statistics

Attachment:

sq.jpg [ 25.89 KiB | Viewed 56978 times ]

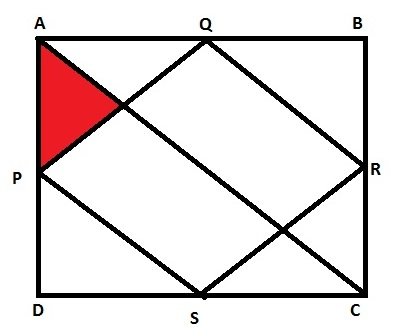

Square PQRS is inscribed in the square ABCD whose perimeter is four. What is the area of the shaded region:

A: $$\frac{1}{12}$$

B: $$\frac{\sqrt{2}}{8}$$

C: $$\frac{1}{16}$$

D: $$\frac{1}{8}$$

E: $$\frac{\sqrt{2}}{16}$$

_________________
Kindly press "+1 Kudos" to appreciate

Originally posted by PareshGmat on 05 Mar 2014, 19:23.
Last edited by PareshGmat on 30 Jul 2014, 18:43, edited 2 times in total.
Veritas Prep GMAT Instructor
Joined: 16 Oct 2010
Posts: 9453
Location: Pune, India
Re: Square PQRS is inscribed in the square ABCD whose  [#permalink]

Show Tags

05 Mar 2014, 22:36
2
PareshGmat wrote:
Square PQRS is inscribed in the square ABCD whose perimeter is four. What is the area of the shaded region:

A: $$\frac{1}{12}$$

B: $$\sqrt{2}/8$$

C: $$\frac{1}{16}$$

D: $$\frac{1}{8}$$

E: $$\sqrt{2}/16$$

There are various ways of approaching it.

Method 1:
Area of ABCD is 1.
Area of PQRS = (1/2)*(diagonal1)*(diagonal2)
Both diagonals of PQRS are 1 each since they are the same lengths as sides of ABCD
Area of PQRS = (1/2)*1*1 = 1/2

Area of leftover region = 1 - 1/2 = 1/2
The leftover region after you cut out PQRS is split into 8 equal areas and the red region is one of those 8.
Hence area of red region is (1/8)*(1/2) = 1/16

Method 2:

The perimeter of ABCD is 4 so each side is 1. So each half side is 1/2.
In triangle APQ, AP and AQ are 1/2 each so $$PQ = 1/\sqrt{2}$$ (using Pythegorean theorem)
So half of PQ is $$1/2\sqrt{2}$$

Area of red triangle = $$(1/2)*(1/2\sqrt{2})*(1/2\sqrt{2}) = 1/16$$
_________________
Karishma
Veritas Prep GMAT Instructor

Learn more about how Veritas Prep can help you achieve a great GMAT score by checking out their GMAT Prep Options >
VP
Joined: 02 Jul 2012
Posts: 1153
Location: India
Concentration: Strategy
GMAT 1: 740 Q49 V42
GPA: 3.8
WE: Engineering (Energy and Utilities)
Re: Square PQRS is inscribed in the square ABCD whose  [#permalink]

Show Tags

05 Mar 2014, 22:38
1
Side of outer square = 1
Half of side of outer square = 0.5
Area of outer square = 1

Area of inner square = $$(side of inner square)^2$$

$$(side of inner square)^2= 0.5^2 + 0.5^2 = 0.25 + 0.25 = 0.5$$

Area of outer square - area of inner square = 1 - 0.5 = 0.5

Shaded area = $$\frac{1}{8}(0.5) = \frac{1}{16}$$

_________________
Did you find this post helpful?... Please let me know through the Kudos button.

Thanks To The Almighty - My GMAT Debrief

GMAT Reading Comprehension: 7 Most Common Passage Types
SVP
Status: The Best Or Nothing
Joined: 27 Dec 2012
Posts: 1787
Location: India
Concentration: General Management, Technology
WE: Information Technology (Computer Software)
Re: Square PQRS is inscribed in the square ABCD whose  [#permalink]

Show Tags

06 Mar 2014, 00:30
1
Area of ABCD = 1

Area if inscribed square PQRS $$= \frac{1}{2}$$ (Its always half)

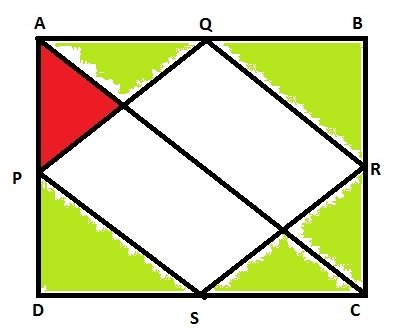

Look at the diagram attached (Green region 4 triangles)

As the area of inscribed square PQRS $$= \frac{1}{2},$$ area of each green shaded triangle $$= \frac{1}{(2*4)} = \frac{1}{8}$$

Area shaded (in red) is half of the triangle, so Answer $$= \frac{1}{16}$$
Attachments

sq.jpg [ 30.48 KiB | Viewed 43238 times ]

_________________
Kindly press "+1 Kudos" to appreciate
Math Expert
Joined: 02 Sep 2009
Posts: 56359
Re: Square PQRS is inscribed in the square ABCD whose  [#permalink]

Show Tags

06 Mar 2014, 01:53
2
1
PareshGmat wrote:

Square PQRS is inscribed in the square ABCD whose perimeter is four. What is the area of the shaded region:

A: $$\frac{1}{12}$$

B: $$\sqrt{2}/8$$

C: $$\frac{1}{16}$$

D: $$\frac{1}{8}$$

E: $$\sqrt{2}/16$$

Minimum calculations are necessary to solve this question. Consider the diagram below:
Attachment:

Untitled.png [ 6.72 KiB | Viewed 43172 times ]
The red region is 1/4 th of 1/4 th of the big square, so 1/16 th of the big square.

_________________
Math Expert
Joined: 02 Sep 2009
Posts: 56359
Re: Square PQRS is inscribed in the square ABCD whose  [#permalink]

Show Tags

06 Mar 2014, 02:16
1
Bunuel wrote:
PareshGmat wrote:

Square PQRS is inscribed in the square ABCD whose perimeter is four. What is the area of the shaded region:

A: $$\frac{1}{12}$$

B: $$\sqrt{2}/8$$

C: $$\frac{1}{16}$$

D: $$\frac{1}{8}$$

E: $$\sqrt{2}/16$$

Minimum calculations are necessary to solve this question. Consider the diagram below:
Attachment:
The red region is 1/4 th of 1/4 th of the big square, so 1/16 th of the big square.

Similar questions on "shaded regions" to practice.
PS:
regular-hexagon-abcdef-has-a-perimeter-of-36-o-is-the-cente-89544.html
the-rectangular-region-above-contains-two-circles-and-a-semi-161428.html
in-the-figure-given-below-abcd-is-a-square-and-p-q-r-and-160941.html
abc-is-an-equilateral-triangle-of-area-3-and-arc-de-is-cent-160282.html
if-abcd-is-a-square-with-area-625-and-cefd-is-a-rhombus-wit-105631.html
the-area-of-each-of-the-16-square-regions-in-the-figure-abov-159463.html
triangle-abo-is-situated-within-the-circle-with-center-o-so-151050.html
four-identical-circles-are-drawn-in-a-square-such-that-each-156620.html
in-the-diagram-points-a-b-and-c-are-on-the-diameter-of-127285.html
in-the-xy-plane-a-triangle-has-vertexes-0-0-4-0-and-88395.html
the-triangles-in-the-figure-above-are-equilateral-and-the-62201.html
in-the-figure-above-triangles-abc-and-mnp-are-both-isosceles-127532.html
abcd-is-a-square-picture-frame-see-figure-efgh-is-a-127823.html
h-g-f-and-e-are-midpoints-of-the-sides-of-square-abcd-127367.html
arcs-de-ef-fd-are-centered-at-c-b-and-a-in-equilateral-127348.html
the-figure-represents-five-concentric-quarter-circles-the-127282.html
in-the-rectangular-coordinate-system-above-for-which-of-the-105212.html
abc-is-a-triangle-with-area-1-af-ab-3-be-bc-3-and-ed-101041.html
the-figure-shown-above-consists-of-three-identical-circles-99874.html
the-figure-above-represents-a-square-garden-that-is-divided-100527.html

DS:
what-fraction-of-the-square-region-in-the-figure-above-is-sh-155481.html
points-m-and-p-lie-on-square-lnqr-and-lm-lq-what-is-the-162164.html
equilateral-triangle-bdf-is-inscribed-in-equilateral-triangl-96109.html

Hope it helps.
_________________
Manager
Joined: 28 Apr 2014
Posts: 205
Re: Square PQRS is inscribed in the square ABCD whose  [#permalink]

Show Tags

30 Jul 2014, 06:56
how do we determine that P,Q,R and S are mid-points of the sides of ABCD ?
SVP
Status: The Best Or Nothing
Joined: 27 Dec 2012
Posts: 1787
Location: India
Concentration: General Management, Technology
WE: Information Technology (Computer Software)
Re: Square PQRS is inscribed in the square ABCD whose  [#permalink]

Show Tags

30 Jul 2014, 18:53
himanshujovi wrote:
how do we determine that P,Q,R and S are mid-points of the sides of ABCD ?

Refer diagram below:

Draw a square
Join both diagonals of the square to get the midpoint (CG)
From that midpoint, you can draw a circle with diameter same as that of the side of the square
The circle will get inscribed in the square, the point of contact of that would be the midpoints of the side of the square

Hope this clarifies
Attachments

ins.png [ 2.26 KiB | Viewed 42429 times ]

_________________
Kindly press "+1 Kudos" to appreciate
Veritas Prep GMAT Instructor
Joined: 16 Oct 2010
Posts: 9453
Location: Pune, India
Re: Square PQRS is inscribed in the square ABCD whose  [#permalink]

Show Tags

30 Jul 2014, 21:05
himanshujovi wrote:
how do we determine that P,Q,R and S are mid-points of the sides of ABCD ?

A square is a symmetrical figure. All its sides and all angles are equal. When you inscribe another symmetrical figure in it, the final figure will also be symmetrical! Is there any reason why P should be closer to A than to D? Since all points are equivalent, P will be in the middle of A and D. You can use the same argument for all points.
_________________
Karishma
Veritas Prep GMAT Instructor

Learn more about how Veritas Prep can help you achieve a great GMAT score by checking out their GMAT Prep Options >
Manager
Joined: 28 Apr 2014
Posts: 205
Re: Square PQRS is inscribed in the square ABCD whose  [#permalink]

Show Tags

30 Jul 2014, 23:32
VeritasPrepKarishma wrote:
himanshujovi wrote:
how do we determine that P,Q,R and S are mid-points of the sides of ABCD ?

A square is a symmetrical figure. All its sides and all angles are equal. When you inscribe another symmetrical figure in it, the final figure will also be symmetrical! Is there any reason why P should be closer to A than to D? Since all points are equivalent, P will be in the middle of A and D. You can use the same argument for all points.

Ok.. At the back of my mind ,I could figure out that the inherent symmetry of the figures in question would have play over here but was not able to recollect any rule or axiom from my study of geometry
Manager
Joined: 28 Apr 2014
Posts: 205
Re: Square PQRS is inscribed in the square ABCD whose  [#permalink]

Show Tags

30 Jul 2014, 23:34
PareshGmat wrote:
himanshujovi wrote:
how do we determine that P,Q,R and S are mid-points of the sides of ABCD ?

Refer diagram below:

Draw a square
Join both diagonals of the square to get the midpoint (CG)
From that midpoint, you can draw a circle with diameter same as that of the side of the square
The circle will get inscribed in the square, the point of contact of that would be the midpoints of the side of the square

Hope this clarifies

Sorry but not able to get this logic. karishma's comment is much more intuitive and I could feel it but could not take it as a necessary pre-requisite in this question
SVP
Status: The Best Or Nothing
Joined: 27 Dec 2012
Posts: 1787
Location: India
Concentration: General Management, Technology
WE: Information Technology (Computer Software)
Re: Square PQRS is inscribed in the square ABCD whose  [#permalink]

Show Tags

31 Jul 2014, 00:18
himanshujovi wrote:
PareshGmat wrote:
himanshujovi wrote:
how do we determine that P,Q,R and S are mid-points of the sides of ABCD ?

Refer diagram below:

Draw a square
Join both diagonals of the square to get the midpoint (CG)
From that midpoint, you can draw a circle with diameter same as that of the side of the square
The circle will get inscribed in the square, the point of contact of that would be the midpoints of the side of the square

Hope this clarifies

Sorry but not able to get this logic. karishma's comment is much more intuitive and I could feel it but could not take it as a necessary pre-requisite in this question

Never mind... What I meant to say is if you rotate the inscribed square, it will follow the circle & the circle will TOUCH the outer square only on its midpoints

In this way PQRS are the respective midpoints
_________________
Kindly press "+1 Kudos" to appreciate
Manager
Joined: 09 Jul 2013
Posts: 109
Re: Square PQRS is inscribed in the square ABCD whose  [#permalink]

Show Tags

07 Jan 2016, 10:43
VeritasPrepKarishma wrote:
himanshujovi wrote:
how do we determine that P,Q,R and S are mid-points of the sides of ABCD ?

A square is a symmetrical figure. All its sides and all angles are equal. When you inscribe another symmetrical figure in it, the final figure will also be symmetrical! Is there any reason why P should be closer to A than to D? Since all points are equivalent, P will be in the middle of A and D. You can use the same argument for all points.

Unless stated in the question (or maybe I'm misinterpreting the meaning of 'inscribed'), there is actually no reason that the inscribed square should touch on the midpoints of the outer square. Consider the figure below:

The inner square only touches the outer square at 4 points, but they are clearly not the midpoints of the sides of the outer square. In this case, we would not be able to figure out the area of the shaded region without additional information (like the ratio of AP to PD). Likewise, for the problem in question, unless we are given more information to know that the inscribed square touches the outer square at its midpoints, then we cannot solve the problem without making assumptions, something we should rarely ever do on the GMAT.

What is the source of the question? It's certainly not an official GMAT problem...
_________________
Dave de Koos
Non-Human User
Joined: 09 Sep 2013
Posts: 11743
Re: Square PQRS is inscribed in the square ABCD whose  [#permalink]

Show Tags

21 Feb 2019, 14:24
Hello from the GMAT Club BumpBot!

Thanks to another GMAT Club member, I have just discovered this valuable topic, yet it had no discussion for over a year. I am now bumping it up - doing my job. I think you may find it valuable (esp those replies with Kudos).

Want to see all other topics I dig out? Follow me (click follow button on profile). You will receive a summary of all topics I bump in your profile area as well as via email.
_________________
Re: Square PQRS is inscribed in the square ABCD whose   [#permalink] 21 Feb 2019, 14:24
Display posts from previous: Sort by

Square PQRS is inscribed in the square ABCD whose

 new topic post reply Question banks Downloads My Bookmarks Reviews Important topics

 Powered by phpBB © phpBB Group | Emoji artwork provided by EmojiOne
