805+ (Hard)|   Geometry|
avatar
TheUltimateWinner
avatar
Schools: Harvard '24 Judge '23 LBS '24 McCombs '24 Mendoza Tepper '24 Ross '24 Cox Marshall '24 Fisher Kelley '24 Jones McDonough '24 Owen '24 Terry BU Simon '24 Katz GWU Mason Babson Gabelli Foster '24 Goizueta '24 Scheller Stern '23 CBS '23 Booth '23 Haas '25 Wharton '25 Stanford '26 Johnson'23 Fuqua '23 Kellogg '23 Kenan-Flagler'23 INSEAD Aug 22 intake Olin '23 Said '23 Sloan '23 Carey Arizona "22 Yale '23 UC Davis Madison '23 Anderson '23 Carroll Carlson '23 Darden '23
Posts: 2,465
Kudos: 2,456
 [18]
In the diagram to the below, the value of x is closest to which of the 11 Mar 2020, 09:18
1
Kudos
Add Kudos
17
Bookmarks
Bookmark this Post
00:00
Start Timer
Pause Timer
Resume Timer
Show Answer
Hide
Show
History
C
Be sure to select an answer first to save it in the Error Log before revealing the correct answer (OA)!

Difficulty:

95% (hard)

Question Stats:

37% (02:24) correct 63% (02:37) wrong based on 222 sessions

History

Date
Time
Result
Not Attempted Yet

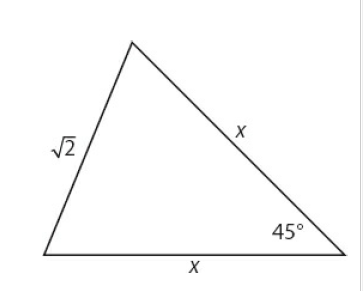

In the diagram to the below, the value of \(x\) is closest to which of the following?

A) \(2+√2\)
B) \(2\)
C) \(√3\)
D) \(√2\)
E) \(1\)
ShowHide Answer
Official Answer
C

Attachments

figure.PNG [ 16.8 KiB | Viewed 6554 times ]

User avatar
sujoykrdatta
User avatar
Joined: 26 Jun 2014
Last visit: 23 Apr 2026
Posts: 587
Own Kudos:
1,191
 [2]
Given Kudos: 14
Status:Mentor & Coach | GMAT Q51 | CAT 99.98
GMAT 1: 740 Q51 V39
Expert
Expert reply
GMAT 1: 740 Q51 V39
Posts: 587
Kudos: 1,191
 [2]
In the diagram to the below, the value of x is closest to which of the Updated on: 06 May 2021, 02:24
Originally posted by sujoykrdatta on 11 Mar 2020, 12:39.
Last edited by sujoykrdatta on 06 May 2021, 02:24, edited 2 times in total.
2
Kudos
Add Kudos
Bookmarks
Bookmark this Post
Asad
In the diagram to the below, the value of \(x\) is closest to which of the following?

A) \(2+√2\)
B) \(2\)
C) \(√3\)
D) \(√2\)
E) \(1\)
Show more

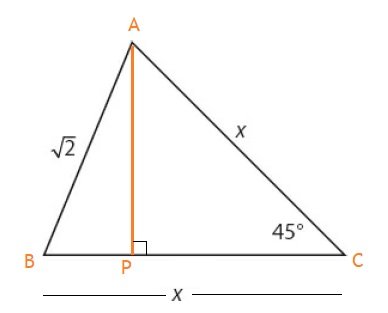

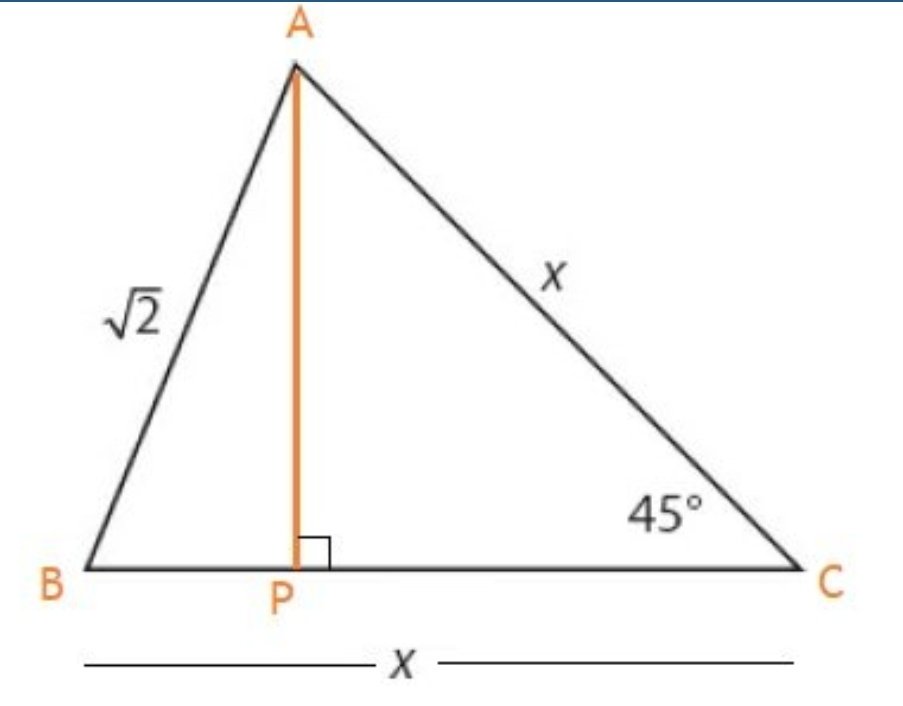

Let us drawn AP perpendicular to BC as shown below:

Attachment:
Screenshot_20210506-145136.jpg [ 38.57 KiB | Viewed 5110 times ]

Attachment:
111.JPG [ 12.39 KiB | Viewed 5258 times ]

In triangle APC: Angle ACP = Angle CAP = \(45^o\)

=> It is a 45-45-90 triangle

=> AP = PC = AC/\(\sqrt{2}\) = \(x/\sqrt{2}\)

=> BP = \(x - x/\sqrt{2}\)

In right triangle ABP: \(AB^2 = AP^2 + BP^2\)

=> \(2 = (x/\sqrt{2})^2 + (x - x/\sqrt{2})^2\)

=> \(2 = x^2/2 + x^2 + x^2/2 - 2x^2/\sqrt{2}\)

=> \(2 = x^2 * (2 - \sqrt{2})\)

=> \(x^2 = 2/(2 - \sqrt{2}) = ~ 2/0.6 = 3.33\) (approximately)

=> \(x = \sqrt{3.33} = 1.8\)

=> Closest value = \(\sqrt{3}\)

Answer C
avatar
TheUltimateWinner
avatar
Schools: Harvard '24 Judge '23 LBS '24 McCombs '24 Mendoza Tepper '24 Ross '24 Cox Marshall '24 Fisher Kelley '24 Jones McDonough '24 Owen '24 Terry BU Simon '24 Katz GWU Mason Babson Gabelli Foster '24 Goizueta '24 Scheller Stern '23 CBS '23 Booth '23 Haas '25 Wharton '25 Stanford '26 Johnson'23 Fuqua '23 Kellogg '23 Kenan-Flagler'23 INSEAD Aug 22 intake Olin '23 Said '23 Sloan '23 Carey Arizona "22 Yale '23 UC Davis Madison '23 Anderson '23 Carroll Carlson '23 Darden '23
Posts: 2,465
Kudos: 2,456
In the diagram to the below, the value of x is closest to which of the Updated on: 11 Mar 2020, 19:36
Originally posted by TheUltimateWinner on 11 Mar 2020, 13:16.
Last edited by TheUltimateWinner on 11 Mar 2020, 19:36, edited 1 time in total.
Kudos
Add Kudos
Bookmarks
Bookmark this Post
sujoykrdatta
Asad
In the diagram to the below, the value of \(x\) is closest to which of the following?

A) \(2+√2\)
B) \(2\)
C) \(√3\)
D) \(√2\)
E) \(1\)



Let us drawn AP perpendicular to BC as shown below:

Attachment:

In triangle APC: Angle ACP = Angle CAP = \(45^o\)

=> It is a 45-45-90 triangle

=> AP = PC = AC/\(\sqrt{2}\) = \(x/\sqrt{2}\)

=> BP = \(x - x/\sqrt{2}\)

In right triangle ABP: \(AB^2 = AP^2 + BP^2\)

=> \(2 = (x/\sqrt{2})^2 + (x - x/\sqrt{2})^2\)

=> \(2 = x^2/2 + x^2 + x^2/2 - 2x^2/\sqrt{2}\)

=> \(2 = x^2 * (2 - \sqrt{2})\)

=> \(x^2 = 2/(2 - \sqrt{2}) = ~ 2/0.6 = 3.33\) (approximately)

=> \(x = \sqrt{3.33} = 1.8\)

=> Closest value = 2

Answer B
Show more

\(√3.33\) = \(1.8\)
1.8 is closed to \(√3\). So the correct choice is C, actually.
User avatar
sujoykrdatta
User avatar
Joined: 26 Jun 2014
Last visit: 23 Apr 2026
Posts: 587
Own Kudos:
1,191
Given Kudos: 14
Status:Mentor & Coach | GMAT Q51 | CAT 99.98
GMAT 1: 740 Q51 V39
Expert
Expert reply
GMAT 1: 740 Q51 V39
Posts: 587
Kudos: 1,191
In the diagram to the below, the value of x is closest to which of the 11 Mar 2020, 13:53
Kudos
Add Kudos
Bookmarks
Bookmark this Post
Asad
sujoykrdatta
Asad
In the diagram to the below, the value of \(x\) is closest to which of the following?

A) \(2+√2\)
B) \(2\)
C) \(√3\)
D) \(√2\)
E) \(1\)



Let us drawn AP perpendicular to BC as shown below:

Attachment:

In triangle APC: Angle ACP = Angle CAP = \(45^o\)

=> It is a 45-45-90 triangle

=> AP = PC = AC/\(\sqrt{2}\) = \(x/\sqrt{2}\)

=> BP = \(x - x/\sqrt{2}\)

In right triangle ABP: \(AB^2 = AP^2 + BP^2\)

=> \(2 = (x/\sqrt{2})^2 + (x - x/\sqrt{2})^2\)

=> \(2 = x^2/2 + x^2 + x^2/2 - 2x^2/\sqrt{2}\)

=> \(2 = x^2 * (2 - \sqrt{2})\)

=> \(x^2 = 2/(2 - \sqrt{2}) = ~ 2/0.6 = 3.33\) (approximately)

=> \(x = \sqrt{3.33} = 1.8\)

=> Closest value = 2

Answer B

\(√3.33\) = \(1.43\)
1.43 is closed to \(√3\). So the correct choice is C, actually.
Show more


How is \(√3.33\) = \(1.43\)?

\(1.4^2 = 1.96\)
\(1.5^2 = 2.25\)
\(1.8^2 = 3.24\)
avatar
suchita2409
avatar
Joined: 11 May 2019
Last visit: 22 Jun 2021
Posts: 165
Own Kudos:
125
Given Kudos: 296
Posts: 165
Kudos: 125
In the diagram to the below, the value of x is closest to which of the 11 Mar 2020, 15:12
Kudos
Add Kudos
Bookmarks
Bookmark this Post
IMO ans is 1

Its an iso . triangle bcoz it has 2 equal sides.
One of the angle is 45 so the other one is also 45( same sides)

Its a 45 45 90 triangle.
The sides of 45 45 90 triangles are in ratio of 1 1 root 2.
Hypo is root 2 therefore x is 1

Posted from my mobile device
User avatar
AnirudhaS
User avatar
LBS Moderator
Joined: 30 Oct 2019
Last visit: 25 Jun 2024
Posts: 778
Own Kudos:
887
Given Kudos: 1,575
Posts: 778
Kudos: 887
In the diagram to the below, the value of x is closest to which of the 11 Mar 2020, 16:55
Kudos
Add Kudos
Bookmarks
Bookmark this Post
sujoykrdatta
Asad
In the diagram to the below, the value of \(x\) is closest to which of the following?

A) \(2+√2\)
B) \(2\)
C) \(√3\)
D) \(√2\)
E) \(1\)



Let us drawn AP perpendicular to BC as shown below:

Attachment:

In triangle APC: Angle ACP = Angle CAP = \(45^o\)

=> It is a 45-45-90 triangle

=> AP = PC = AC/\(\sqrt{2}\) = \(x/\sqrt{2}\)

=> BP = \(x - x/\sqrt{2}\)

In right triangle ABP: \(AB^2 = AP^2 + BP^2\)

=> \(2 = (x/\sqrt{2})^2 + (x - x/\sqrt{2})^2\)

=> \(2 = x^2/2 + x^2 + x^2/2 - 2x^2/\sqrt{2}\)

=> \(2 = x^2 * (2 - \sqrt{2})\)

=> \(x^2 = 2/(2 - \sqrt{2}) = ~ 2/0.6 = 3.33\) (approximately)

=> \(x = \sqrt{3.33} = 1.8\)

=> Closest value = 2

Answer B
Show more
Hi sir, I think its closer to \(\sqrt{3}\).
\(\sqrt{3}\)=1.7. Your answer is 1.8. It is closer to 1.7 than 2.

Anyways my working is as follows -
\(2 = (\frac{x}{\sqrt{2}})^2 + (x - \frac{x}{\sqrt{2}})^2\)
\(or, 2 = 2x^2 -\frac{2x^2}{\sqrt{2}}\)
\(or, 1 = x^2 - \frac{x^2}{\sqrt{2}}\)
\(or, x^2 = \frac{\sqrt{2}}{(\sqrt{2}-1)}\)
\(or, x^2 = 1.4/0.4 = 3 (approx)\)
\(or, x = \sqrt{3}\)
User avatar
sujoykrdatta
User avatar
Joined: 26 Jun 2014
Last visit: 23 Apr 2026
Posts: 587
Own Kudos:
1,191
Given Kudos: 14
Status:Mentor & Coach | GMAT Q51 | CAT 99.98
GMAT 1: 740 Q51 V39
Expert
Expert reply
GMAT 1: 740 Q51 V39
Posts: 587
Kudos: 1,191
In the diagram to the below, the value of x is closest to which of the 11 Mar 2020, 18:47
Kudos
Add Kudos
Bookmarks
Bookmark this Post
AnirudhaS
sujoykrdatta
Asad
In the diagram to the below, the value of \(x\) is closest to which of the following?

A) \(2+√2\)
B) \(2\)
C) \(√3\)
D) \(√2\)
E) \(1\)



Let us drawn AP perpendicular to BC as shown below:

Attachment:

In triangle APC: Angle ACP = Angle CAP = \(45^o\)

=> It is a 45-45-90 triangle

=> AP = PC = AC/\(\sqrt{2}\) = \(x/\sqrt{2}\)

=> BP = \(x - x/\sqrt{2}\)

In right triangle ABP: \(AB^2 = AP^2 + BP^2\)

=> \(2 = (x/\sqrt{2})^2 + (x - x/\sqrt{2})^2\)

=> \(2 = x^2/2 + x^2 + x^2/2 - 2x^2/\sqrt{2}\)

=> \(2 = x^2 * (2 - \sqrt{2})\)

=> \(x^2 = 2/(2 - \sqrt{2}) = ~ 2/0.6 = 3.33\) (approximately)

=> \(x = \sqrt{3.33} = 1.8\)

=> Closest value = 2

Answer B
Hi sir, I think its closer to \(\sqrt{3}\).
\(\sqrt{3}\)=1.7. Your answer is 1.8. It is closer to 1.7 than 2.

Anyways my working is as follows -
\(2 = (\frac{x}{\sqrt{2}})^2 + (x - \frac{x}{\sqrt{2}})^2\)
\(or, 2 = 2x^2 -\frac{2x^2}{\sqrt{2}}\)
\(or, 1 = x^2 - \frac{x^2}{\sqrt{2}}\)
\(or, x^2 = \frac{\sqrt{2}}{(\sqrt{2}-1)}\)
\(or, x^2 = 1.4/0.4 = 3 (approx)\)
\(or, x = \sqrt{3}\)
Show more


Yes obviously :roll:
I don't know what came of me :|
Must have not seen that option of root3 at all! :-D - corrected that - thanks

Posted from my mobile device
avatar
TheUltimateWinner
avatar
Schools: Harvard '24 Judge '23 LBS '24 McCombs '24 Mendoza Tepper '24 Ross '24 Cox Marshall '24 Fisher Kelley '24 Jones McDonough '24 Owen '24 Terry BU Simon '24 Katz GWU Mason Babson Gabelli Foster '24 Goizueta '24 Scheller Stern '23 CBS '23 Booth '23 Haas '25 Wharton '25 Stanford '26 Johnson'23 Fuqua '23 Kellogg '23 Kenan-Flagler'23 INSEAD Aug 22 intake Olin '23 Said '23 Sloan '23 Carey Arizona "22 Yale '23 UC Davis Madison '23 Anderson '23 Carroll Carlson '23 Darden '23
Posts: 2,465
Kudos: 2,456
In the diagram to the below, the value of x is closest to which of the 11 Mar 2020, 19:44
Kudos
Add Kudos
Bookmarks
Bookmark this Post
sujoykrdatta
Asad
sujoykrdatta



Let us drawn AP perpendicular to BC as shown below:

Attachment:

In triangle APC: Angle ACP = Angle CAP = \(45^o\)

=> It is a 45-45-90 triangle

=> AP = PC = AC/\(\sqrt{2}\) = \(x/\sqrt{2}\)

=> BP = \(x - x/\sqrt{2}\)

In right triangle ABP: \(AB^2 = AP^2 + BP^2\)

=> \(2 = (x/\sqrt{2})^2 + (x - x/\sqrt{2})^2\)

=> \(2 = x^2/2 + x^2 + x^2/2 - 2x^2/\sqrt{2}\)

=> \(2 = x^2 * (2 - \sqrt{2})\)

=> \(x^2 = 2/(2 - \sqrt{2}) = ~ 2/0.6 = 3.33\) (approximately)

=> \(x = \sqrt{3.33} = 1.8\)

=> Closest value = 2

Answer B

\(√3.33\) = \(1.43\)
1.43 is closed to \(√3\). So the correct choice is C, actually.


How is \(√3.33\) = \(1.43\)?

\(1.4^2 = 1.96\)
\(1.5^2 = 2.25\)
\(1.8^2 = 3.24\)
Show more
My calculator gave me wrong info (value of root 3.33). I was convinced with that wrong value (1.43) because i already know that the correct choice is C.

Edited the first comment..

Posted from my mobile device
avatar
Jokertrap
avatar
Joined: 12 Feb 2020
Last visit: 17 Sep 2024
Posts: 3
Own Kudos:
2
 [1]
Given Kudos: 53
Posts: 3
Kudos: 2
 [1]
In the diagram to the below, the value of x is closest to which of the 29 Mar 2020, 07:15
1
Kudos
Add Kudos
Bookmarks
Bookmark this Post
I do not understand this question. When x and x are the same lengths, their respective angles have to have the same degree, right ? so i do not understand how anyonecan say this is a 45 - 45 - 90 triangle. If this was true root 2 has to be the longest side, so that the angles of 45 and 45 are respective to the two x.

In this case side root 2 faces the angle 45 so the angles for x are 135/2, so you can not use the pythagorean theorem to calculate the sides?
User avatar
Fdambro294
User avatar
Joined: 10 Jul 2019
Last visit: 20 Aug 2025
Posts: 1,331
Own Kudos:
772
Given Kudos: 1,656
Posts: 1,331
Kudos: 772
In the diagram to the below, the value of x is closest to which of the 29 Apr 2021, 09:01
Kudos
Add Kudos
Bookmarks
Bookmark this Post
I believe that the question was created by Manhattan Prep to illustrate strategic guessing (I could be wrong, it was a while ago). Also, since we are estimating, we can make some approximate guesses.

I’m a triangle, the sides of a triangle are, in a sense, proportional to the angles of the triangle. The sides are in fact in a constant proportion to the Sine of each angle’s degree measure - the angle opposite each Side

Side a / (Sin Angle Opp a) = Side b / (Sin Angle Opp b) = Side c / (Sin Angle Opp c)

(1st) given we have an isosceles triangle, the other 2 angle measures both equal = (135/2) = 67.5 degrees


(2nd) The “Sine” Proportion can be taken. For each side and its opposite angle, the following proportion holds true:

Sqrt(3) / (Sine 45 deg.) = (X) / (Sine 67.5 deg.) = (X) / (Sine 67.5 deg.)


The Sine of 45 degrees = (1) / (sqrt(2))

We can use the Sine of 60 degrees to approximate the Sine of 67.5 degrees, since it easier to find and since 60 degrees is close to 67.5 degrees

The sine of 60 degrees = sqrt(3) / 2


Substituting we have:

[ sqrt(2) ] / [ 1/sqrt(2) ] = [ x ] / [ sqrt(3) / 2]

In the right hand side of the equation, the square root of 2 squared = 2——-you are left with:


2 = (2x) / (sqrt(3))

—cancel the 2 in the NUM on each side of the equation—

1 = X / (sqrt(3))

-cross multiply-

X = sqrt(3)

Since this is only an approximation and not the actual value or X, I suspect there are other ways to estimate the answer. It’s too coincidental that the estimate found happened to be the exact value of the correct answer approximation.

Posted from my mobile device
User avatar
sujoykrdatta
User avatar
Joined: 26 Jun 2014
Last visit: 23 Apr 2026
Posts: 587
Own Kudos:
1,191
Given Kudos: 14
Status:Mentor & Coach | GMAT Q51 | CAT 99.98
GMAT 1: 740 Q51 V39
Expert
Expert reply
GMAT 1: 740 Q51 V39
Posts: 587
Kudos: 1,191
In the diagram to the below, the value of x is closest to which of the 06 May 2021, 02:23
Kudos
Add Kudos
Bookmarks
Bookmark this Post
sujoykrdatta
Asad
In the diagram to the below, the value of \(x\) is closest to which of the following?

A) \(2+√2\)
B) \(2\)
C) \(√3\)
D) \(√2\)
E) \(1\)



Let us drawn AP perpendicular to BC as shown below:

Attachment:
The attachment 111.JPG is no longer available

In triangle APC: Angle ACP = Angle CAP = \(45^o\)

=> It is a 45-45-90 triangle

=> AP = PC = AC/\(\sqrt{2}\) = \(x/\sqrt{2}\)

=> BP = \(x - x/\sqrt{2}\)

In right triangle ABP: \(AB^2 = AP^2 + BP^2\)

=> \(2 = (x/\sqrt{2})^2 + (x - x/\sqrt{2})^2\)

=> \(2 = x^2/2 + x^2 + x^2/2 - 2x^2/\sqrt{2}\)

=> \(2 = x^2 * (2 - \sqrt{2})\)

=> \(x^2 = 2/(2 - \sqrt{2}) = ~ 2/0.6 = 3.33\) (approximately)

=> \(x = \sqrt{3.33} = 1.8\)

=> Closest value = \(\sqrt{3}\)

Answer C
Show more

For some reason the image is not visible ... Uploading here once more:

Attachment:
Screenshot_20210506-145136.jpg [ 38.57 KiB | Viewed 4757 times ]

Hope this helps.
User avatar
MBAB123
User avatar
Joined: 05 Jul 2020
Last visit: 30 Jul 2023
Posts: 528
Own Kudos:
319
Given Kudos: 150
GMAT 1: 720 Q49 V38
WE:Accounting (Accounting)
Products:
My Reviews
GMAT 1: 720 Q49 V38
Posts: 528
Kudos: 319
In the diagram to the below, the value of x is closest to which of the 25 Jul 2021, 21:53
Kudos
Add Kudos
Bookmarks
Bookmark this Post
I had no idea how to solve this in a methodological way so I took an educated guess. In a 45-45-90 triangle, the largest side is √2 times the smallest side. The smallest side in our question is √2, so we know that the largest side (2 in our case) cannot be 2 (√2*√2) since this is not a 45-45-90 triangle. The largest side will have to be less than 2 and obviously more than √2 (the side opposite the smaller angle). We're only left with option C here. Is this approach correct?
Moderators:
Bunuel
Math Expert
109820 posts
Krunaal
Tuck School Moderator
853 posts
